Description
General part information
09119

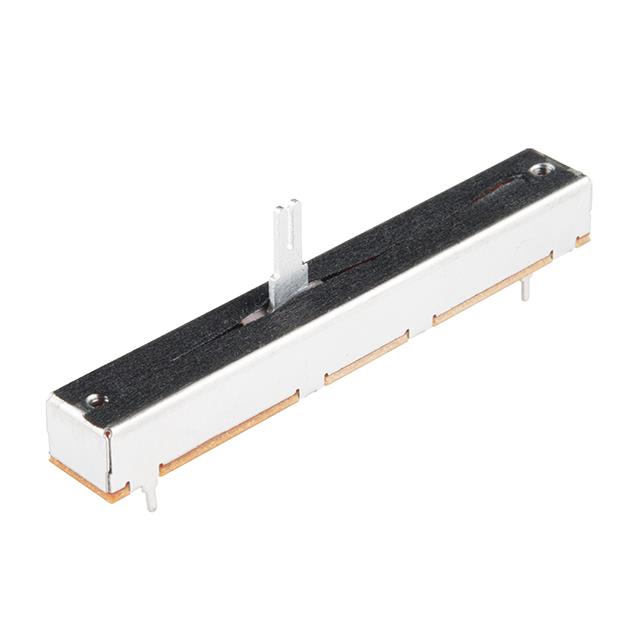

10 kOhms 0.5W, 1/2W Through Hole Slide Potentiometer Top Adjustment Type
Technical Specifications
Parameters and characteristics for this part
| Specification | 09119 |
|---|---|
| Adjustment Type | Top |
| Fader Type | Standard |
| Mounting Type | Through Hole |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 10 kOhm |
| Size / Dimension Height | 0.433 in |
| Size / Dimension Length | 3.465 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.492 in |
| Tolerance | 20 % |
| Travel Range | 60 mm |
