1.10.051.204/0001

Active

RAFI USA

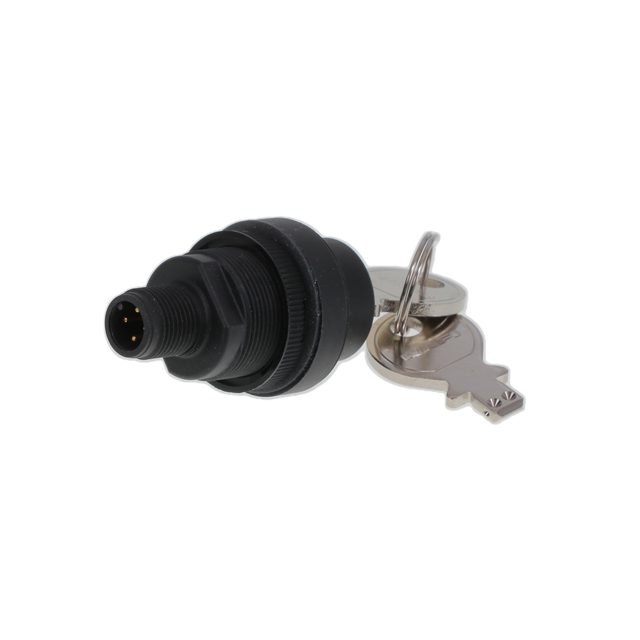

SWITCH KEYLK 2POS SPDT 100MA 32V

Search across all available documentation for this part.

Active

RAFI USA

SWITCH KEYLK 2POS SPDT 100MA 32V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1.10.051.204/0001	1.10.051 Series

Actuator Type	Flat Key	Flat Key
Angle of Throw	90 °	40 - 90 °
Circuit	SPDT	SPDT
Contact Material	Gold (Au)	Gold (Au)
Contact Timing	Not Specified	Not Specified
Current Rating (Amps)	100 mA	100 mA
Depth Behind Flange	30 mm	30 mm
Electrical Life	50000 Cycles	50000 Cycles
Features	IP65	IP65
Key Removable Positions	Center	Center, All
Mechanical Life	-	300000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	On-On	On-Off-On, On-On, On-Mom
Termination Style	Connector	Connector
Voltage Rating - DC	32 V	32 V

SWITCH KEYLK 3POS SPDT 100MA 32V

Part	Actuator Type	Depth Behind Flange	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Key Removable Positions	Termination Style	Switch Function	Features	Angle of Throw	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Circuit	Electrical Life	Contact Timing	Number of Positions	Mechanical Life
RAFI USA 1.10.051.005/0001	Flat Key	30 mm	22.3 mm	100 mA	Center	Connector	On-Off-On	IP65	90 °	Gold (Au)	85 °C	-40 °C	32 V	SPDT	50000 Cycles	Not Specified
RAFI USA 1.10.051.604/0001	Flat Key	30 mm	22.3 mm	100 mA	All	Connector	On-On	IP65	90 °	Gold (Au)	85 °C	-40 °C	32 V	SPDT	50000 Cycles	Not Specified	2
RAFI USA 1.10.051.201/0001	Flat Key	30 mm	22.3 mm	100 mA	Center	Connector	On-Mom	IP65	40 °	Gold (Au)	85 °C	-40 °C	32 V	SPDT		Not Specified	2	300000 Cycles
RAFI USA 1.10.051.204/0001	Flat Key	30 mm	22.3 mm	100 mA	Center	Connector	On-On	IP65	90 °	Gold (Au)	85 °C	-40 °C	32 V	SPDT	50000 Cycles	Not Specified	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 2 Position SPDT 100mA (DC) AC 32 VDC Panel Mount
