BF054E0684J--
ObsoleteKYOCERA AVX

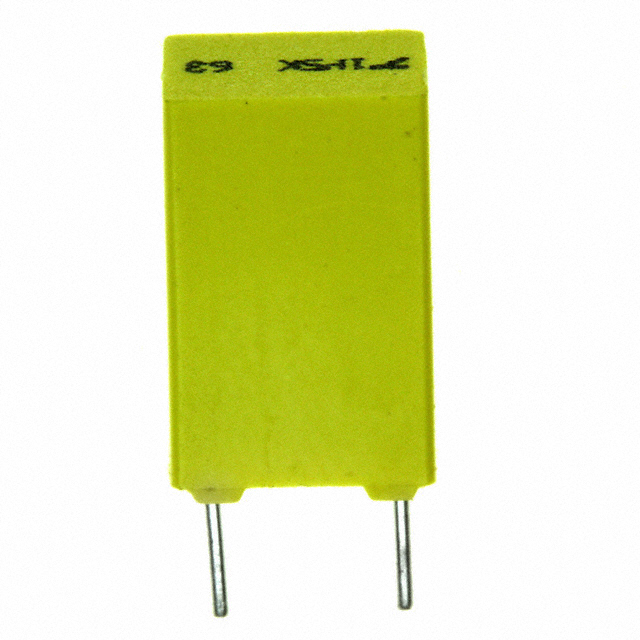

CAP FILM 0.68UF 5% 100VDC RADIAL
BF054E0684J--
ObsoleteKYOCERA AVX
CAP FILM 0.68UF 5% 100VDC RADIAL
Description
General part information
BF054E0684J--
0.68 µF Film Capacitor 63V 100V Polyester, Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | BF054E0684J-- |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.68 µF |
| Dielectric Material | Polyester, Metallized |
| Height - Seated (Max) | 0.472 in |
| Lead Spacing | 0.2 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.236 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 63 V |
| Voltage Rating - DC | 100 V |
