CTSMDS4F-R10M
ObsoleteCentral Technologies

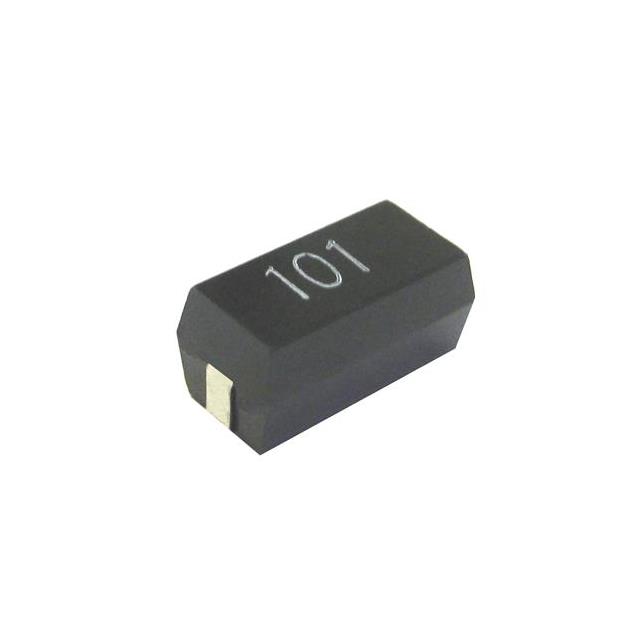

SMD SHIELDED RF INDUCTOR
CTSMDS4F-R10M
ObsoleteCentral Technologies
SMD SHIELDED RF INDUCTOR
Description
General part information
CTSMDS4F-R10M
100 nH Shielded Inductor 26mOhm Max 2-SMD, J-Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | CTSMDS4F-R10M |
|---|---|
| Current - Saturation (Isat) | 3 A |
| DC Resistance (DCR) (Max) | 26 mOhm |
| Frequency - Self Resonant | 400 MHz |
| Height - Seated (Max) | 0.228 in |
| Inductance | 100 nH |
| Inductance Frequency - Test | 25 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2-SMD, J-Lead |
| Package Name | SMD |
| Q | 50 |
| Shielding | Shielded |
| Size / Dimension Length | 0.504 in |
| Size / Dimension Width | 0.238 in |
| Tolerance | 20 % |
