Description
General part information

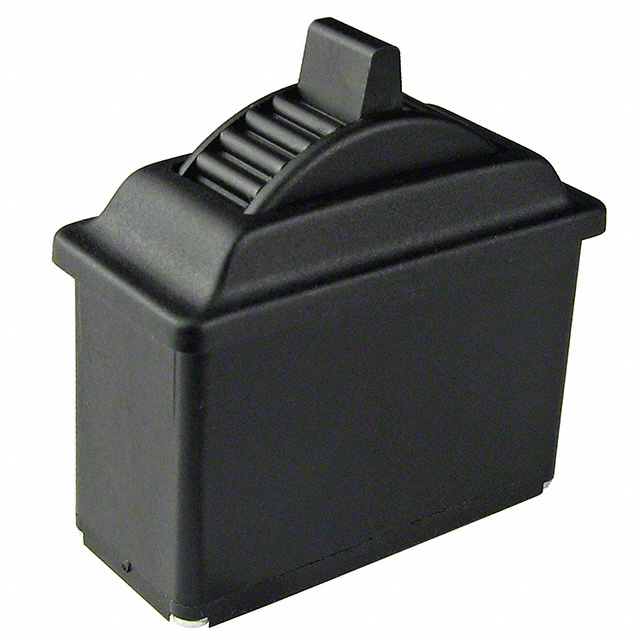

TW01BLK13
Thumbwheel, 1 - Axis Analog (Hall Effect) Output
Technical Specifications
Parameters and characteristics for this part
| Specification | TW01BLK13 |
|---|---|
| Actuator Type | Thumbwheel |
| Axis Count | 1 Axis |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mechanical Life (Cycles) | 5000000 Cycles |
| Mounting Type | Panel Mount |
| Operating Force | 80 gf |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog (Hall Effect) |
| Panel Cutout Length | 36.6 mm |
| Panel Cutout Shape | Rectangular |
| Panel Cutout Width | 16.3 mm |
| Switch Function | 2-Way Directional |
| Termination Style | Wire Leads |
| Type | 1 - Axis, Thumbwheel |
| Voltage - Supply | 5 VDC |
