C-51505NFQJ-LB-AJN
ObsoleteKyocera International, Inc.
LCD MOD 40DIG 20X2 TRANSMIS BLUE
C-51505NFQJ-LB-AJN
ObsoleteKyocera International, Inc.
LCD MOD 40DIG 20X2 TRANSMIS BLUE
Description
General part information
C-51505NFQJ-LB-AJN

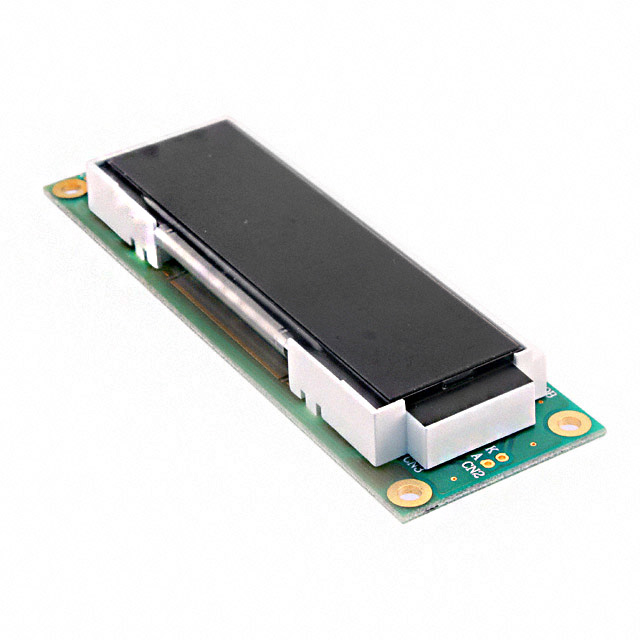

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - Blue Parallel 116.00mm x 37.00mm x 15.60mm
Technical Specifications
Parameters and characteristics for this part
| Specification | C-51505NFQJ-LB-AJN |
|---|---|
| Background Color | Black |
| Backlight Color | Blue |
| Backlight Type | LED |
| Character Height | 5.55 mm |
| Character Height (Dots) | 8 Dots |
| Character Width | 3.2 mm |
| Character Width (Dots) | 5 Dots |
| Display Columns | 20 |
| Display Mode | Transmissive |
| Display Rows | 2 |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size Height | 0.65 mm |
| Dot Size Width | 0.6 mm |
| Interface | Parallel |
| Number of Characters | 40 characters |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Outline Height | 15.6 mm |
| Outline Length | 116 mm |
| Outline Width | 37 mm |
| Text Color | Blue |
| Viewing Area Length | 83 mm |
| Viewing Area Width | 18.6 mm |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
