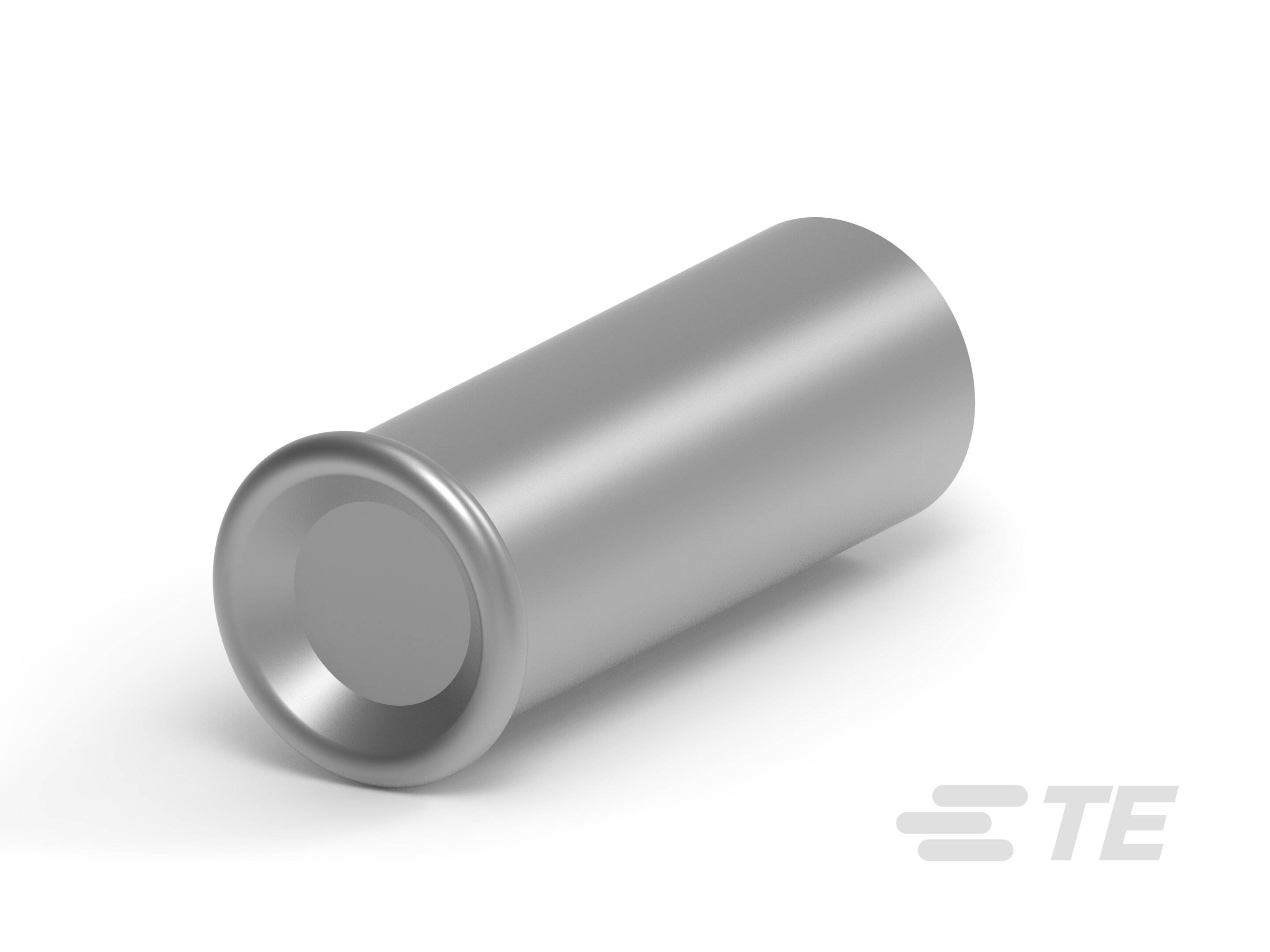

MSS LOOSE PIECE 5.5 TIN TIN-5645980-1

5645980-1

Active
TE Connectivity AMP Connectors

CONN PIN RCPT .042-.049 SOLDER

Find alt
MSS LOOSE PIECE 5.5 TIN TIN-5645980-1

5645980-1

Active
TE Connectivity AMP Connectors

CONN PIN RCPT .042-.049 SOLDER

Find alt

Description

General part information

5645980-1

7.82 mm [.308 in] Socket Length, 2.59 mm [.102 in] PCB Hole, Bullet Nose, .823 – 1.04 mm² Wire, 18 – 17 AWG, Cable-to-Board, Pin Sockets

Technical Specifications

Parameters and characteristics for this part

Specification5645980-1
Accepts Pin Diameter (Max)0.049 in
Accepts Pin Diameter (Min)0.042 in
Contact FinishTin
Contact Finish Thickness100 µin
Contact MaterialBeryllium Copper
Flange Diameter0.118 in
Length - Overall0.308 in
Mounting Hole Diameter0.105 in
Socket Depth0.275 in
Tail TypeNo Tail
TerminationSolder
