6280-6PG-315
ActiveConxall/Switchcraft

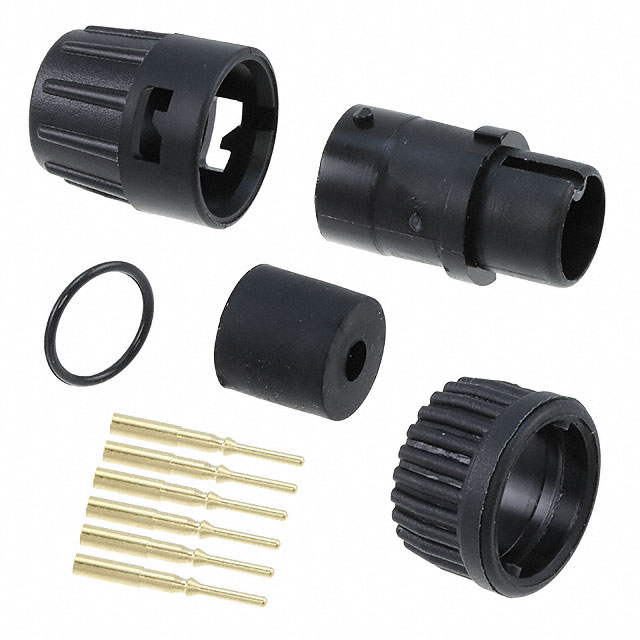

CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6280-6PG-315
ActiveConxall/Switchcraft
CONN PLUG MALE 6POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6280-6PG-315 | 6280-6PG Series |
|---|---|---|
| Applications | Automotive, Communication Systems, Instrumentation | Automotive, Communication Systems, Instrumentation |
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 0.21 - 0.25 in |
| Cable Opening | - | 0.19 - 0.22 in |
| Cable Opening | - | 4.83 - 5.59 mm |
| Cable Opening | - | 5.33 - 6.35 mm |
| Cable Opening | - | 0.16 in |
| Cable Opening | - | 0.18 in |
| Cable Opening | - | 4.06 mm |
| Cable Opening | - | 4.57 mm |
| Cable Opening [custom] | 0.17 in, 0.15 in | 0.13 - 0.17 in |
| Cable Opening [custom] | 3.81 mm, 4.32 mm | 3.3 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
| Voltage Rating | 600 V | 600 V |
6280-6PG Series
CONN PLUG MALE 6POS GOLD CRIMP
| Part | Ingress Protection | Number of Positions | Orientation | Shielding | Contact Finish - Mating | Connector Type | Voltage Rating | Primary Material | Backshell Material, Plating | Termination | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Color | Fastening Type | Contact Material | Features | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Current Rating (Amps) | Mounting Type | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 6280-6PG-519 | Weathertight | 6 | Keyed | Unshielded | Gold | Male Pins, Plug | 600 V | Plastic | Nylon, Polyamide (PA) | Crimp | Automotive, Communication Systems, Instrumentation | -40 °C | 115 °C | Black | Bayonet Lock | Brass | Backshell | 0.21 in | 0.19 in | 4.83 mm | 5.33 mm | Varies by Wire Gauge | Free Hanging (In-Line) | ||||||
Conxall/Switchcraft 6280-6PG-516 | Weathertight | 6 | Keyed | Unshielded | Gold | Male Pins, Plug | 600 V | Plastic | Nylon, Polyamide (PA) | Crimp | Automotive, Communication Systems, Instrumentation | -40 °C | 115 °C | Black | Bayonet Lock | Brass | Backshell | Varies by Wire Gauge | Free Hanging (In-Line) | 0.16 in | 0.18 in | 4.06 mm | 4.57 mm | ||||||
Conxall/Switchcraft 6280-6PG-315 | Weathertight | 6 | Keyed | Unshielded | Gold | Male Pins, Plug | 600 V | Plastic | Nylon, Polyamide (PA) | Crimp | Automotive, Communication Systems, Instrumentation | -40 °C | 115 °C | Black | Bayonet Lock | Brass | Backshell | Varies by Wire Gauge | Free Hanging (In-Line) | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | ||||||||
Conxall/Switchcraft 6280-6PG-522 | Weathertight | 6 | Keyed | Unshielded | Gold | Male Pins, Plug | 600 V | Plastic | Nylon, Polyamide (PA) | Crimp | Automotive, Communication Systems, Instrumentation | -40 °C | 115 °C | Black | Bayonet Lock | Brass | Backshell | 0.25 in | 0.22 in | 5.59 mm | 6.35 mm | Varies by Wire Gauge | Free Hanging (In-Line) | ||||||
Conxall/Switchcraft 6280-6PG-513 | Weathertight | 6 | Keyed | Unshielded | Gold | Male Pins, Plug | 600 V | Plastic | Nylon, Polyamide (PA) | Crimp | Automotive, Communication Systems, Instrumentation | -40 °C | 115 °C | Black | Bayonet Lock | Brass | Backshell | Varies by Wire Gauge | Free Hanging (In-Line) | 0.13 in, 0.15 in | 3.3 mm, 3.81 mm |
