TS621E
ActiveSeiko Instruments

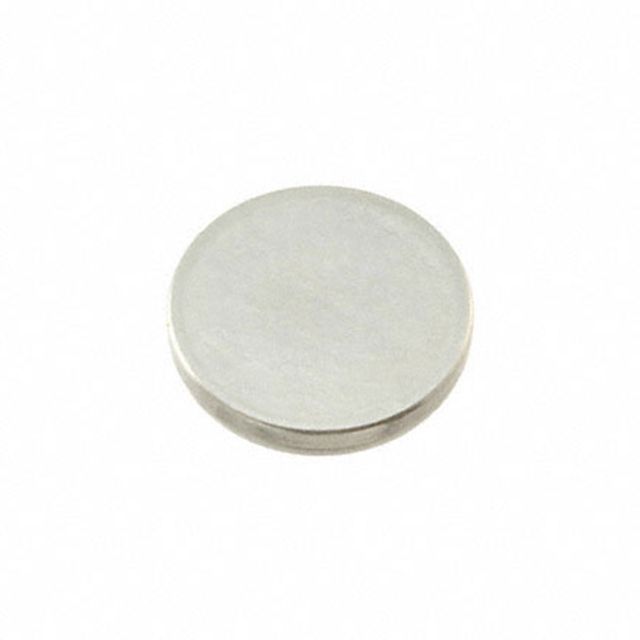

BATT LITHIUM 1.5V 2.5MAH COIN
TS621E
ActiveSeiko Instruments
BATT LITHIUM 1.5V 2.5MAH COIN
Description
General part information
TS621E
Coin, 6.8mm 1.5 V Lithium Battery Rechargeable (Secondary) 2.5mAH
Technical Specifications
Parameters and characteristics for this part
| Specification | TS621E |
|---|---|
| Battery Cell Size | Coin |
| Battery Cell Size Dimension | 6.8 mm |
| Battery Chemistry | Lithium |
| Capacity (Charge) | 2.5 mAH |
| Discharge Rate (Current) | 15 µA |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 0.27 in |
| Size / Dimension Height | 0.08 in |
| Standard Charge Current | 15 µA |
| Termination Style | Requires Holder |
| Voltage - Rated | 1.5 VDC |
| Weight | 0.22 g |
