Description
General part information

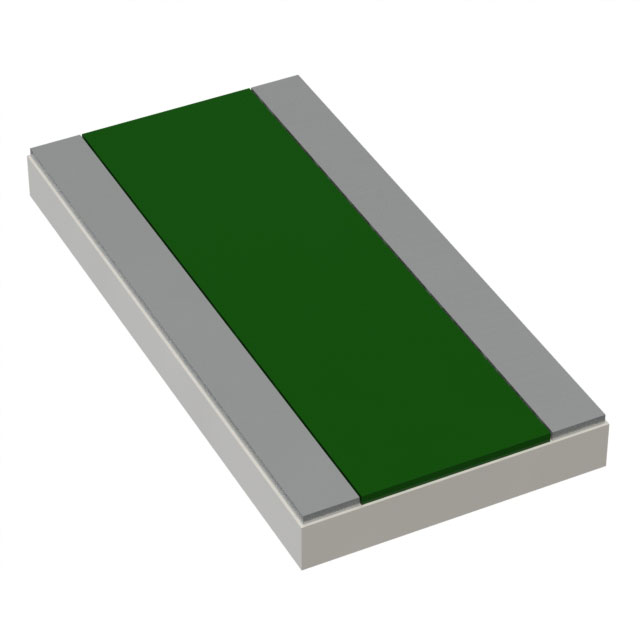

KRL11050-C-R009-F-T1
9 mOhms ±1% 5W Chip Resistor Wide 4320 (11050 Metric), 2043 Automotive AEC-Q200, Current Sense Metal Foil
Technical Specifications
Parameters and characteristics for this part
| Specification | KRL11050-C-R009-F-T1 |
|---|---|
| Composition | Metal Foil |
| Features | Current Sense, Automotive AEC-Q200 |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2043, Wide 4320 (11050 Metric) |
| Power (Watts) | 5 W |
| Ratings | AEC-Q200 |
| Resistance | 9 mOhms |
| Size / Dimension Length | 0.197 in |
| Size / Dimension Width | 0.433 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
