3240714
ActivePhoenix Contact

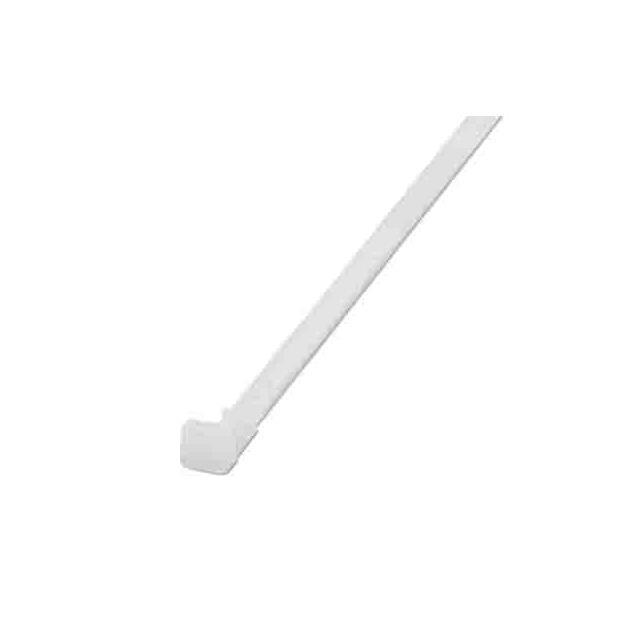

CABLE TIE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3240714
ActivePhoenix Contact
CABLE TIE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3240714 | WT-D HF Series |
|---|---|---|
| Color | Transparent | Black, Transparent |
| Length - Actual | 250 mm | 200 - 250 mm |
| Length - Actual | 0.82 ft | 0.656 - 0.82 ft |
| Length - Actual | 9.84 in | 7.87 - 9.84 in |
| Length - Actual | - | 350 mm |
| Length - Actual | - | 1.148 ft |
| Length - Approximate | 10 in | 7.75 - 13.75 in |
| Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Width [x] | 0.295 in | 0.295 in |
| Width [x] | 7.5 mm | 7.5 mm |
| Wire/Cable Tie Type | Standard, Locking | Standard, Locking |
WT-D HF Series
CABLE TIE
| Part | Width [x] | Width [x] | Color | Material | Length - Approximate | Length - Actual | Length - Actual | Length - Actual | Wire/Cable Tie Type | Mounting Type | Length - Actual [x] | Length - Actual [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3240715 | 0.295 in | 7.5 mm | Black | Polyamide (PA66), Nylon 6/6 | 10 in | 250 mm | 0.82 ft | 9.84 in | Locking, Standard | Free Hanging (In-Line) | ||
Phoenix Contact 3240714 | 0.295 in | 7.5 mm | Transparent | Polyamide (PA66), Nylon 6/6 | 10 in | 250 mm | 0.82 ft | 9.84 in | Locking, Standard | Free Hanging (In-Line) | ||
Phoenix Contact 3240713 | 0.295 in | 7.5 mm | Black | Polyamide (PA66), Nylon 6/6 | 7.75 in | 200 mm | 0.656 ft | 7.87 " | Locking, Standard | Free Hanging (In-Line) | ||
Phoenix Contact 3240717 | 0.295 in | 7.5 mm | Black | Polyamide (PA66), Nylon 6/6 | 13.75 in | Locking, Standard | Free Hanging (In-Line) | 350 mm | 1.148 ft | |||
Phoenix Contact 3240716 | 0.295 in | 7.5 mm | Transparent | Polyamide (PA66), Nylon 6/6 | 13.75 in | Locking, Standard | Free Hanging (In-Line) | 350 mm | 1.148 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 0.14 | |
Description
General part information
WT-D HF Series
Standard, Locking Transparent 0.295" (7.50mm)
