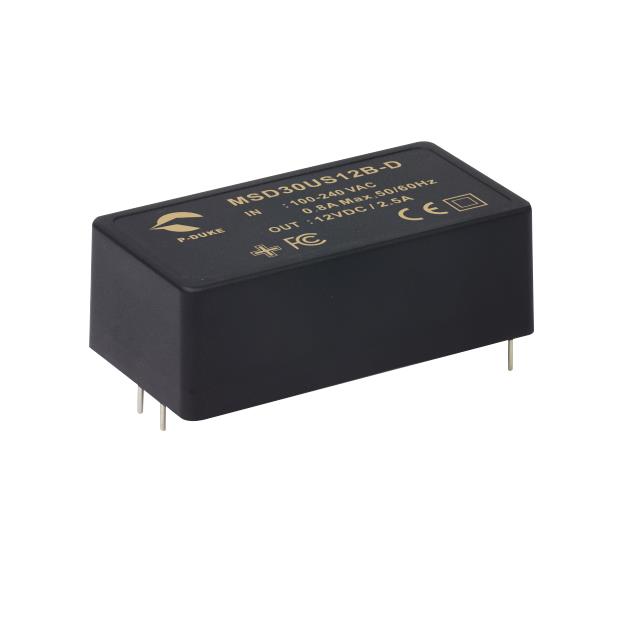

MSD30US05B-D

Active

P-DUKE Technology

AC/DC CONVERTER 5V 30W

Search across all available documentation for this part.

Active

P-DUKE Technology

AC/DC CONVERTER 5V 30W

Technical Specifications

Parameters and characteristics for this part

Specification	MSD30US05B-D

Applications	ITE (Commercial), Medical
Approval Agency	CE, cURus, CB, FCC
Current - Output (Max) [Max]	6 A
Efficiency	87 %
Features	Adjustable Output, Universal Input
Line Regulation	2 %
Load Regulation	0.7 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2.89 in
Size / Dimension [x]	73.3 mm
Size / Dimension [y]	1.5 in
Size / Dimension [y]	38.1 mm
Size / Dimension [z]	1 "
Size / Dimension [z]	25.4 mm
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Output 1	5 V

AC/DC CONVERTER 5V 30W

Part	Voltage - Input [Min]	Voltage - Input [Max]	Package / Case	Number of Outputs	Line Regulation	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Type	Applications	Voltage - Output 1	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Load Regulation	Features	Power (Watts)	Current - Output (Max) [Max]
P-DUKE Technology MSD30US05B-D	85 VAC, 120 VDC	264 VAC, 370 VDC	5-DIP Module	1	2 %	87 %	1 "	25.4 mm	2.89 in	1.5 in	73.3 mm	38.1 mm	Enclosed	ITE (Commercial), Medical	5 V	CB, CE, cURus, FCC	85 °C	-40 °C	Through Hole	0.7 %	Adjustable Output, Universal Input	30 W	6 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 5V 6A 85 ~ 264 VAC, 120 ~ 370 VDC Input
