1553 WG005

Active

ALPHA WIRE

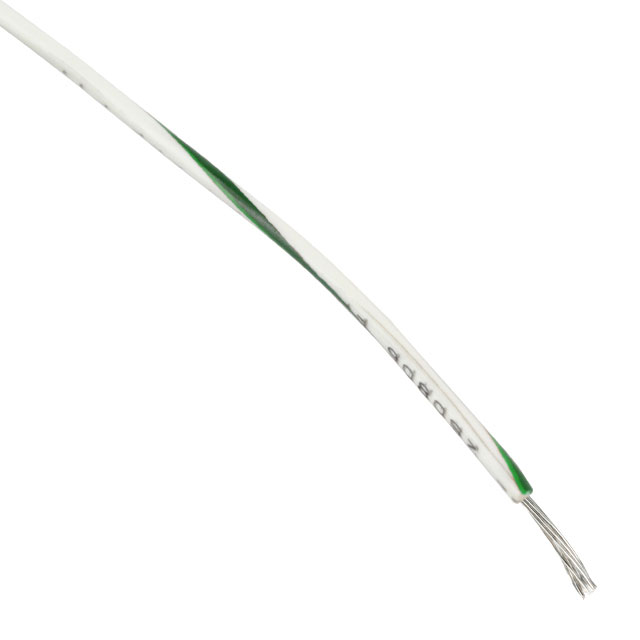

HOOK-UP STRND 20AWG WHT/GRN 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHook-Up Wire Catalog

1553 WG005

Active

ALPHA WIRE

HOOK-UP STRND 20AWG WHT/GRN 100'

Deep-Dive with AI

DocumentsHook-Up Wire Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1553 WG005	1553 Series

Cable Type	Hook-Up	Hook-Up
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	30 AWG	30 AWG
Conductor Strand [custom]	10	10
Jacket (Insulation) Diameter [diameter]	0.069 in	0.069 in
Jacket (Insulation) Diameter [diameter]	1.75 mm	1.75 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.016 in	0.016 in
Jacket (Insulation) Thickness	0.41 mm	0.41 mm
Jacket Color	-	Green, White, Brown Stripe, Violet, Yellow, Blue, White, Red Stripe, Red, White, Yellow Stripe, White, Orange Stripe, White, Violet Stripe, Slate, Brown, Black
Length	-	1000 ft
Length	-	304.8 m
Length [x]	30.5 m	30.5 m
Length [x]	100 ft	100 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Qualification	MIL-W-76B Type MW	MIL-W-76B Type MW
Voltage	1000 V	1000 V
Wire Gauge	20 AWG	20 AWG

1553 Series

HOOK-UP STRND 20AWG GREEN 1000'

Part	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Jacket (Insulation) Material	Cable Type	Wire Gauge	Conductor Material	Qualification	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Length [x]	Length [x]
ALPHA WIRE 1553 GR001	1000 ft	304.8 m	30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Green
ALPHA WIRE 1553 GR005			30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Green	30.5 m	100 ft
ALPHA WIRE 1553 WN001	1000 ft	304.8 m	30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	White, Brown Stripe
ALPHA WIRE 1553 VI005			30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Violet	30.5 m	100 ft
ALPHA WIRE 1553 YL001	1000 ft	304.8 m	30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Yellow
ALPHA WIRE 1553 YL005			30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Yellow	30.5 m	100 ft
ALPHA WIRE 1553 BL001	1000 ft	304.8 m	30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Blue
ALPHA WIRE 1553 WR001	1000 ft	304.8 m	30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	White, Red Stripe
ALPHA WIRE 1553 WH001	1000 ft	304.8 m	30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm
ALPHA WIRE 1553 RD005			30 AWG	10	-40 °C	80 C	1000 V	Poly-Vinyl Chloride (PVC)	Hook-Up	20 AWG	Copper, Tinned	MIL-W-76B Type MW	0.016 in	0.41 mm	0.069 in	1.75 mm	Red	30.5 m	100 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 70.25
		3	$ 64.97
		5	$ 61.67
		10	$ 58.05
		25	$ 54.09
		50	$ 51.12
		100	$ 48.48

Description

General part information

1553 Series

20 AWG Hook-Up Wire 10/30 White, Green Stripe 1000V 100.0' (30.5m)

Documents

Technical documentation and resources

Hook-Up Wire Catalog

Datasheet
