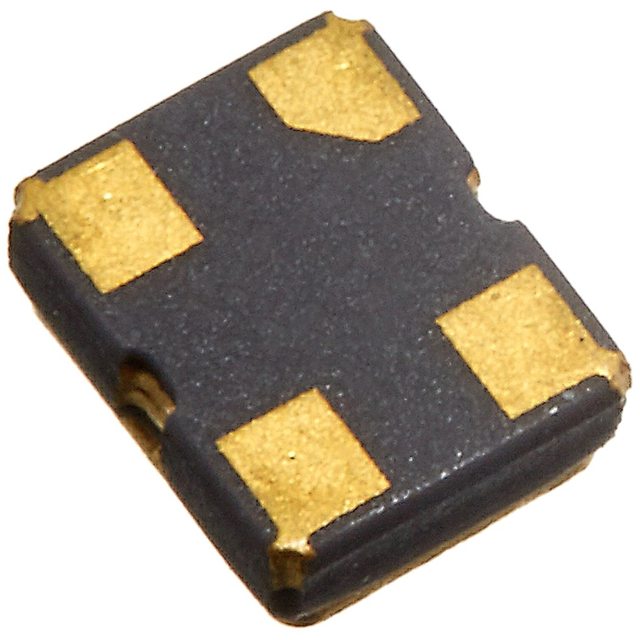

RTXE-2520ED333-C-50.000-TR
ActiveRaltron Electronics
XTAL OSC TCXO 50MHZ 3.3V HCMOS
RTXE-2520ED333-C-50.000-TR
ActiveRaltron Electronics
XTAL OSC TCXO 50MHZ 3.3V HCMOS
Description
General part information
RTXE-2520ED333-C-50.000-TR
50 MHz TCXO HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | RTXE-2520ED333-C-50.000-TR |
|---|---|
| Absolute Pull Range (Maximum) | 1 ppm |
| Absolute Pull Range (Minimum) | -1 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) | 7 mA |
| Frequency | 50 MHz |
| Frequency Stability | 2.5 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
