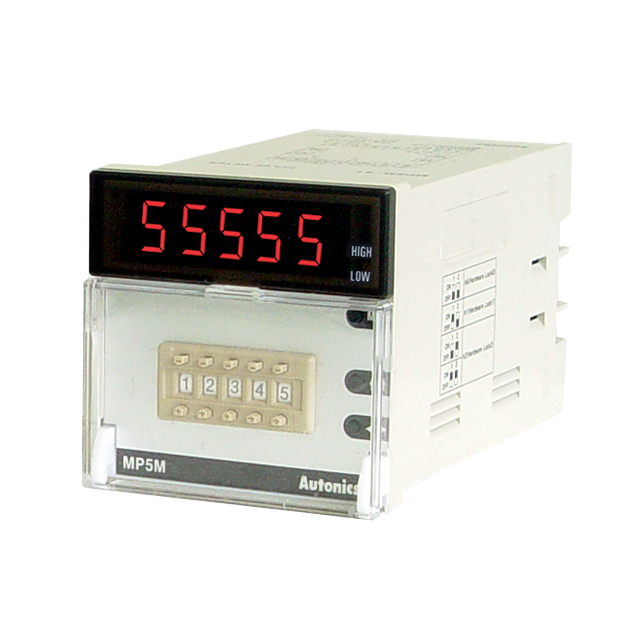

Specification	MP5M-4N

Display Characters - Height	0.315 in
Display Type	LED - Red Characters
Features	Pulse Meter
Measuring Range	Multiple
Measuring Type	Process
Mounting Type	Panel Mount
Number of Characters Per Row	5 characters
Panel Cutout Length	68 mm
Panel Cutout Shape	Square
Panel Cutout Width	68 mm
Termination Style	Screw Terminal
Type	Process Meter
Voltage - Supply (Maximum)	240 VAC
Voltage - Supply (Minimum)	100 VAC

- Series

Part	Display Type	Features	Termination Style	Mounting Type	Panel Cutout Width	Panel Cutout Shape	Panel Cutout Length	Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Measuring Type	Display Characters - Height	Relay (Count)	Output Type	Number of Characters Per Row	Measuring Range	Voltage - Load (Min)	Voltage - Load (Max)	Circuit	Package / Case	Package Name	Load Current	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Timing Adjustment Method	Contact Rating (Current)	Function	Delay Time (Maximum)	Delay Time (Minimum)	Pin Count	Voltage - Supply	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum
Autonics MP5W-41	LED - Red Characters	Pulse Meter	Screw Terminal	Panel Mount	45 mm	Rectangular	92 mm	Process Meter	100 VAC	240 VAC	Process	0.315 in	3	Relay	5 characters	Multiple
Autonics SR2-4230			Screw Terminal	Chassis Mount Chassis Mount or Panel Mount										AC Zero Cross			24 V	240 V	3PST-NO (3 Form A)	Module	Module	30 A	240 VAC	90 V
Autonics AT8N-1			Plug In	Panel Mount															DPDT (2 Form C) SPDT (1 Form C)						Hand Dial	5 A	Programmable (Multi-Function)	100 Hrs	0.05 Sec	8	12 VDC
Autonics MP5Y-4N	LED - Red Characters	Pulse Meter	Screw Terminal	Panel Mount	31.5 mm	Rectangular	68 mm	Process Meter	100 VAC	240 VAC	Process	0.315 in			5 characters	Multiple
Autonics LE3SB			Plug In	Panel Mount					24 VAC	240 VAC									SPDT (1 Form C)						Up/Down Digit Keys	3 A	Programmable (Multi-Function)	9990 Hrs	0.01 Sec	8
Autonics MP5W-4N	LED - Red Characters	Pulse Meter	Screw Terminal	Panel Mount	45 mm	Rectangular	92 mm	Process Meter	100 VAC	240 VAC	Process	0.315 in			5 characters	Multiple
Autonics SRH3-4475			Screw Terminal	Chassis Mount Chassis Mount or Panel Mount										AC Zero Cross			48 V	480 V	3PST-NO (3 Form A)	SSR with Integrated Heat Sink	Module	75 A	240 VAC	90 V
Autonics SRH3-1250			Screw Terminal	Chassis Mount Chassis Mount or Panel Mount										AC Zero Cross			24 V	240 V	3PST-NO (3 Form A)	SSR with Integrated Heat Sink	Module	50 A										30 VDC	4 VDC
Autonics MP5W-44	LED - Red Characters	Pulse Meter	Screw Terminal	Panel Mount	45 mm	Rectangular	92 mm	Process Meter	100 VAC	240 VAC	Process	0.315 in		PV Output Solid State (5)	5 characters	Multiple
Autonics MP5Y-44	LED - Red Characters	Pulse Meter	Screw Terminal	Panel Mount	31.5 mm	Rectangular	68 mm	Process Meter	100 VAC	240 VAC	Process	0.315 in		PV Output	5 characters	Multiple

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MP5M-4N | Datasheet
