B59960C0120A070
ActiveEPCOS - TDK Electronics

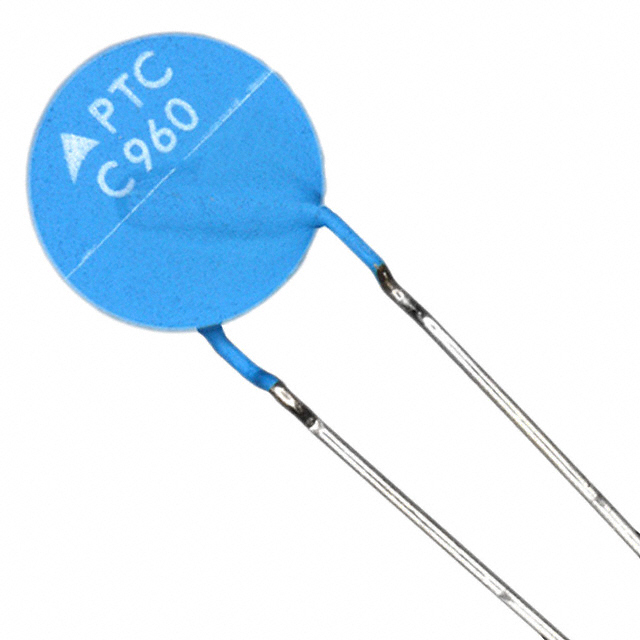

PTC RESET FUSE 80V 250MA RADIAL
B59960C0120A070
ActiveEPCOS - TDK Electronics
PTC RESET FUSE 80V 250MA RADIAL
Description
General part information
B59960C0120A070
Ceramic PTC Resettable Fuse 80V 250 mA Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | B59960C0120A070 |
|---|---|
| Approval Agency | UR |
| Current - Hold (Ih) (Max) | 250 mA |
| Current - Max | 4.3 A |
| Current - Trip (It) | 500 mA |
| Height - Seated (Max) | 0.571 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - 25°C (Typ) | 5.6 Ohms |
| Size / Dimension Diameter | 0.433 in |
| Size / Dimension Thickness | 0.138 in |
| Type | Ceramic |
| Voltage - Max | 80 Vpk |
