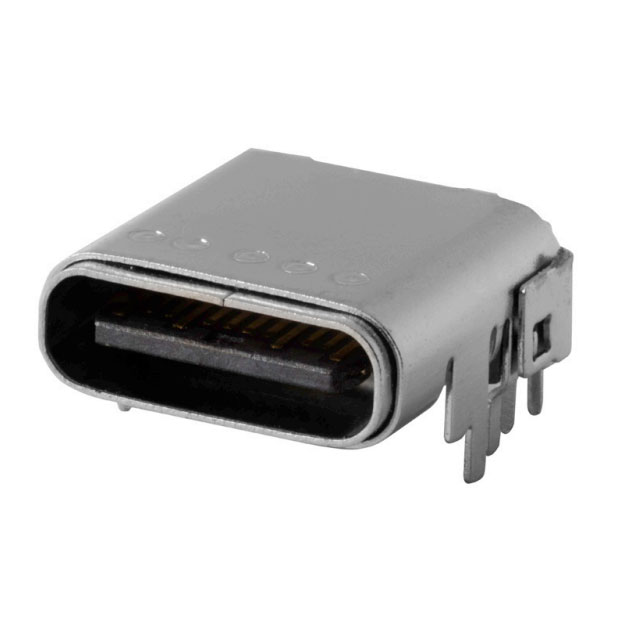

UJ40-C-H-G-L1-SMT-TR
ActiveSame Sky (Formerly CUI Devices)
CONN USB 4.0 TYPE C RCP 24 POS 0.25MM SOLDER RA SMD 24 TERMINAL 1 PORT T/R
UJ40-C-H-G-L1-SMT-TR
ActiveSame Sky (Formerly CUI Devices)
CONN USB 4.0 TYPE C RCP 24 POS 0.25MM SOLDER RA SMD 24 TERMINAL 1 PORT T/R
Description
General part information
UJ40-C-H-G-L1-SMT-TR
USB-C (USB TYPE-C) USB 4.0 Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ40-C-H-G-L1-SMT-TR |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating Options | 0.25A, 1.25A, 5A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 cycles |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Shell/Shielding Material | Steel, Stainless |
| Shielding | Shielded |
| Specifications | USB 4.0 |
| Termination | Solder |
