AAA3FBZ

Active

Switchcraft Inc.

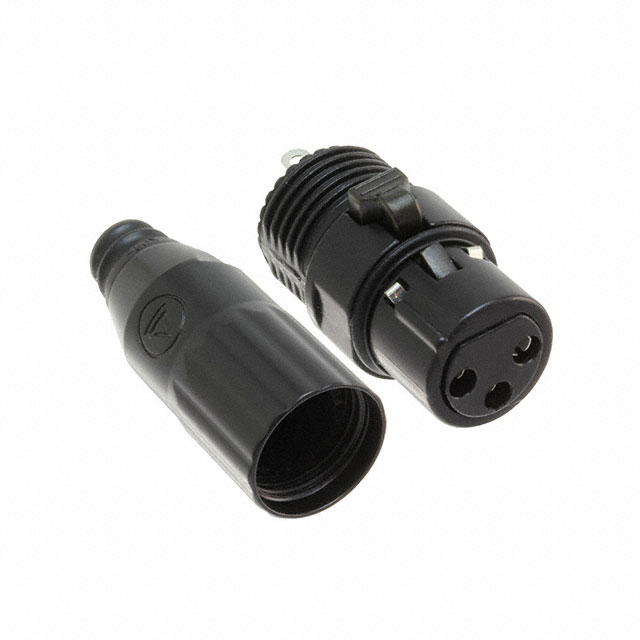

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AAA3FBZ

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AAA3FBZ	AAA3FB Series

Applications	Audio, Industrial, Instrumentation, Medical	Audio, Instrumentation, Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Chrome, Zinc	Chrome, Zinc, Thermoplastic
Cable Opening	-	0.15 in
Cable Opening	-	3.81 mm
Cable Opening	-	7.24 mm
Cable Opening	-	0.285 in
Cable Opening	-	0.205 - 5.21 mm
Cable Opening	-	0.145 - 3.68 in
Cable Opening [diameter]	2.54 mm, 5.59 mm	2.54 - 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in	0.1 - 0.22 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Silver	Silver, Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	15 A	15 A
Fastening Type	Latch Lock	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	-	IP66
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature	-	65 °C
Operating Temperature	-	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Black Painted
Shell Material	Zinc Alloy	Zinc Alloy
Shell Size - Insert	XLR	XLR
Shielding	Shielded	Shielded
Voltage Rating	125 VAC	125 VAC

AAA3FB Series

CONN XLR CONNECTOR F 3 POS ST CABLE MOUNT 3 TERMINAL 1 PORT

Part	Contact Material	Features	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Mounting Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Backshell Material, Plating	Ingress Protection	Contact Finish - Mating	Primary Material	Shell Size - Insert	Color	Orientation	Shell Finish	Applications	Fastening Type	Shell Material	Shielding	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Current Rating (Amps)	Voltage Rating
Switchcraft Inc. AAA3FBZH	Copper Alloy	Backshell, Cable Clamp, Ground, Strain Relief	0.15 in	3.81 mm	7.24 mm	0.285 in	Free Hanging (In-Line)	Thermoplastic	65 °C	-40 °C	Female Sockets, Plug	Chrome, Zinc	IP66	Silver	Metal	XLR	Black	Keyed	Chrome	Audio, Instrumentation	Latch Lock	Zinc Alloy	Shielded
Switchcraft Inc. AAA3FBYYLP	Copper Alloy	Backshell, Ground, Strain Relief					Free Hanging (In-Line)	Thermoplastic			Female Sockets, Plug	Thermoplastic		Silver	Metal	XLR		Keyed	Black Painted	Audio, Instrumentation	Latch Lock	Zinc Alloy	Shielded	0.205 in, 5.21 mm	0.145 in, 3.68 mm
Switchcraft Inc. AAA3FBAUZ	Copper Alloy	Backshell, Cable Clamp, Ground, Strain Relief					Free Hanging (In-Line)	Thermoplastic			Female Sockets, Plug	Chrome, Zinc		Gold	Metal	XLR	Black	Keyed	Chrome	Audio, Industrial, Instrumentation, Medical	Latch Lock	Zinc Alloy	Shielded			2.54 mm, 5.59 mm	0.1 in, 0.22 in	15 A	125 VAC
Switchcraft Inc. AAA3FBAUZH	Copper Alloy	Backshell, Cable Clamp, Ground, Strain Relief	0.15 in	3.81 mm	7.24 mm	0.285 in	Free Hanging (In-Line)	Thermoplastic	65 °C	-40 °C	Female Sockets, Plug	Chrome, Zinc	IP66	Gold	Metal	XLR	Black	Keyed	Chrome	Audio, Instrumentation	Latch Lock	Zinc Alloy	Shielded
Switchcraft Inc. AAA3FBZ	Copper Alloy	Backshell, Cable Clamp, Ground, Strain Relief					Free Hanging (In-Line)	Thermoplastic			Female Sockets, Plug	Chrome, Zinc		Silver	Metal	XLR	Black	Keyed	Chrome	Audio, Industrial, Instrumentation, Medical	Latch Lock	Zinc Alloy	Shielded			2.54 mm, 5.59 mm	0.1 in, 0.22 in	15 A	125 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.91
		10	$ 6.06
		25	$ 5.47
		50	$ 5.07
		100	$ 4.71
		300	$ 4.20
		500	$ 3.99
		1000	$ 3.73
		2500	$ 3.48

Description

General part information

AAA3FB Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources
