AT-5030-TF-2-LW100-R
ActivePUI Audio, Inc.

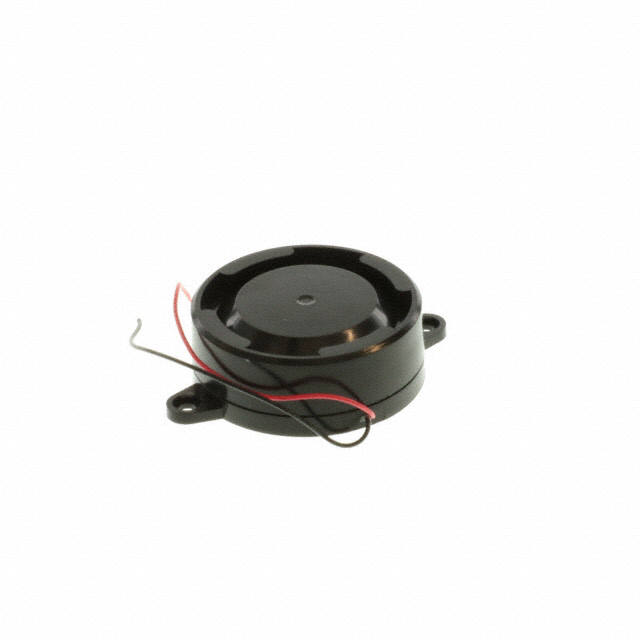

BUZZER PIEZO 24V 30MM FLANGE
AT-5030-TF-2-LW100-R
ActivePUI Audio, Inc.
BUZZER PIEZO 24V 30MM FLANGE
Description
General part information
AT-5030-TF-2-LW100-R
Buzzers Transducer, Externally Driven Piezo 24 V 12mA 3kHz 106dB @ 24V, 30cm Panel Mount, Flange Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | AT-5030-TF-2-LW100-R |
|---|---|
| Current - Supply | 12 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 3 kHz |
| Height - Seated (Max) | 0.728 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Panel Mount, Flange |
| Operating Mode | Single Tone |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Port Location | Top |
| Size / Dimension Diameter | 1.181 in |
| Sound Pressure Level (SPL) | 106 dB |
| Technology | Piezo |
| Termination | Wire Leads |
| Voltage - Rated | 24 VAC |
