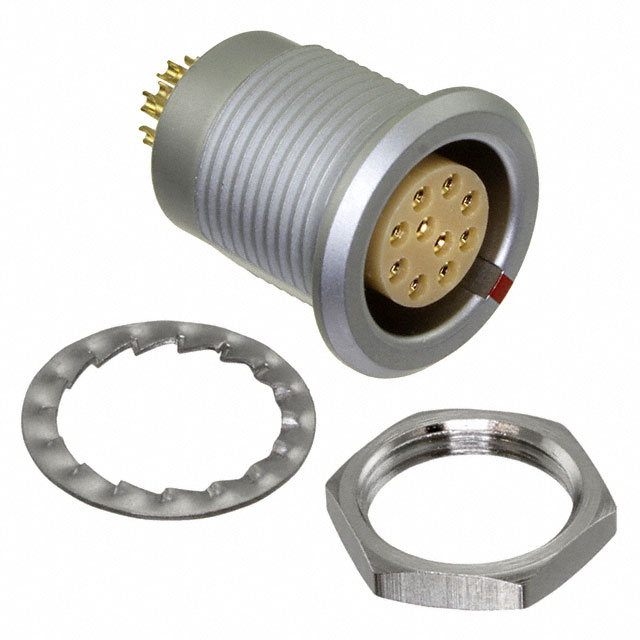

FLBD-10EGFS-GCP-001

Active

CIRCULAR PUSH PULL CONNECTORS FLOS, B SERIES D SIZE, METAL, 8A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH PULL, SOLDER, RECEPTACLE, REAR FASTENED, PANEL THICKNESS 8.5, IP50

Find alt

Alpha

FLBD-10EGFS-GCP-001

Active

McGill Microwave Systems

CIRCULAR PUSH PULL CONNECTORS FLOS, B SERIES D SIZE, METAL, 8A, 10 PINS, FEMALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH PULL, SOLDER, RECEPTACLE, REAR FASTENED, PANEL THICKNESS 8.5, IP50

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

B Series

10 Position Circular Connector Receptacle, Female Sockets Solder Cup

Technical Specifications

Parameters and characteristics for this part

Specification	FLBD-10EGFS-GCP-001

Applications	Telecommunications, Medical, Instrumentation, Testing Equipment & Measurement, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	8 A
Fastening Type	Push-Pull
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyphenylene Sulfide, PPS
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	D-10
Shielding	Shielded
Termination	Solder Cup
Voltage Rating	450 VAC

B Series

...

Part	Ingress Protection Description	Ingress Protection IP Rating	Fastening Type	Connector Type	Shielding	Number of Positions	Mounting Type	Shell Finish	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Contact Material	Current Rating	Material Flammability Rating	Primary Material	Color	Orientation	Insert Material	Shell Size - Insert	Mounting Feature	Voltage Rating	Termination	Cable Type	1st Connector Mounting Type	2nd Connector Type	1st Connector Number of Positions Loaded	Usage	1st Connector Orientation	1st Connector Gender	Cable Material	1st Connector Number of Positions	Assembly Configuration	1st Connector Shell Size - Insert	1st Connector Type	Length	Configuration	Transfer Rate	Features	Wire Gauge	Specifications	Cable Opening (Min)	Cable Opening (Max)	Current Rating Options	Voltage Rating (Type)	Backshell Material, Plating
McGill Microwave Systems ABD-03RMMS-LC7001	Dust Tight Waterproof	IP67	Bayonet Lock	Male Pins Receptacle	Unshielded	3	Panel Mount	Nickel	-40 °C	105 °C	Gold	Copper Alloy	5 A	UL94 V-0	Plastic	Black	Keyed	Glass Filled Nylon PA Polyamide	B	Bulkhead Rear Side Nut	300 VAC/DC	Solder Cup
McGill Microwave Systems BD-05BFMM-LR6A05	Dust Tight Water Resistant	IP66			Shielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Male Pins	Polyvinyl Chloride (PVC)	5 positions	Standard	B	Receptacle Right Angle	16.4 ft
McGill Microwave Systems BU-10PMMM-SL7A01	Dust Tight Waterproof	IP67			Shielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Male Pins	Polyvinyl Chloride (PVC)	10 positions	Standard	B	Plug	3.28 ft
McGill Microwave Systems BD-03PMFM-SL7A01	Dust Tight Waterproof	IP67			Shielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Female Sockets	Polyvinyl Chloride (PVC)	3 positions	Standard	B	Plug	3.28 ft
McGill Microwave Systems BD-03AMFM-LL6A10	Dust Tight Water Resistant	IP66			Unshielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Female Sockets	Polyvinyl Chloride (PVC)	3 positions	Standard		Plug	32.8 ft
McGill Microwave Systems NUB20FL-NAML-SA005					Shielded											Black																			16.4 ft	A Male to Mini B Male (Circular Coupling)	480 Mbps	Industrial Environments IP67	24 AWG 28 AWG	USB 2.0
McGill Microwave Systems DU-20BFFM-SL6A01	Dust Tight Water Resistant	IP66			Shielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Female Sockets	Polyvinyl Chloride (PVC)	20 positions	Standard	D	Receptacle	3.28 ft
McGill Microwave Systems BBD-06BFMA-LL7001	Dust Tight Waterproof	IP67	Bayonet Lock	Male Pins Plug	Unshielded	6	Free Hanging (In-Line)	Nickel	-40 °C	105 °C	Gold	Copper Alloy		UL94 V-0	Plastic	Black	A	Glass Filled Nylon PA Polyamide	B		250 V	Solder Cup																Backshell Coupling Nut			0.177 in	0.256 in	10A 5A	DC	Nylon Polyamide (PA)
McGill Microwave Systems BD-05PMFM-LL7A10	Dust Tight Waterproof	IP67			Shielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Female Sockets	Polyvinyl Chloride (PVC)	5 positions	Standard	B	Plug	32.8 ft
McGill Microwave Systems BD-06BFMM-LR6A01	Dust Tight Water Resistant	IP66			Shielded											Black							Round	Free Hanging (In-Line)	Wire Leads	All	Industrial Environments	Keyed	Male Pins	Polyvinyl Chloride (PVC)	6 positions	Standard	B	Receptacle Right Angle	3.28 ft
