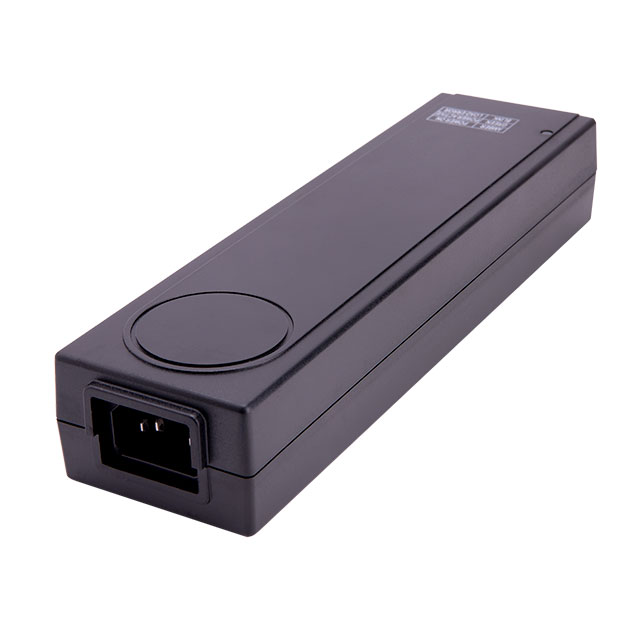

PENT1080B5600F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER
PENT1080B5600F01
ObsoleteSL POWER / Advanced Energy
AC/DC DESKTOP ADAPTER
Description
General part information
PENT1080B5600F01
56V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | PENT1080B5600F01 |
|---|---|
| Approval Agency | CE, TUV, cULus |
| Compliance | IEEE802.3af |
| Current - Output | 1.42 A |
| Efficiency | 80 % |
| Features | SCP, OCP |
| Input Connector | IEC 320-C14 (Power), RJ45 (Data) |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | Desktop |
| Note | AC Power Cord Sold Separately |
| Number of Ports | 1 |
| Operating Temperature (Max) | 40 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 80 W |
| Size / Dimension Height | 1.48 in |
| Size / Dimension Length | 8.34 in |
| Size / Dimension Width | 2.24 in |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 56 V |
