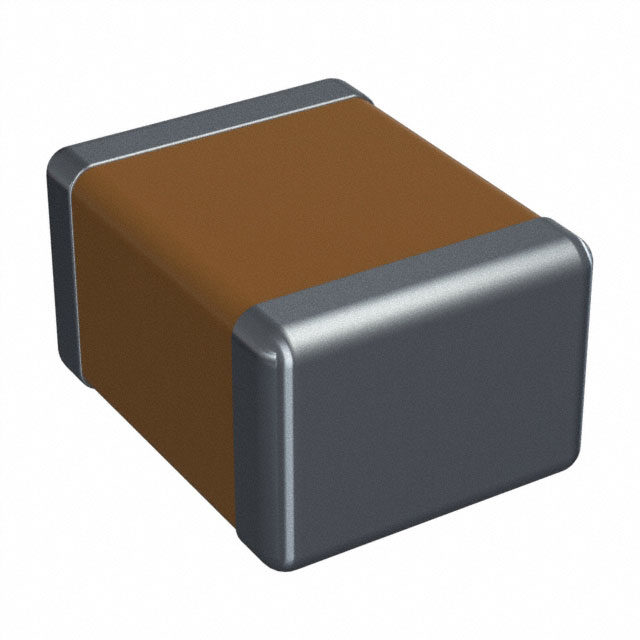

Specification	1210CC223KAZ1A

Applications	Boardflex Sensitive
Capacitance	0.022 µF
Features	Soft Termination, High Voltage
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	1210 (3225 Metric)
Size / Dimension Length	0.13 in
Size / Dimension Width	0.098 in
Temperature Coefficient	X7R
Thickness (Max)	0.071 in
Tolerance	10 %
Voltage - Rated	630 V

Flexiterm MLCC X7R HV Series

Part	Package / Case	Voltage - Rated (Option 2)	Voltage - Rated (Option 1)	Applications	Size / Dimension Width	Size / Dimension Length	Mounting Type	Temperature Coefficient	Operating Temperature (Max)	Operating Temperature (Min)	Features	Capacitance	Tolerance	Voltage - Rated	Thickness (Max)
KYOCERA AVX 1206CC102MAZ2A	1206 (3216 Metric)	630 V	600 V	Boardflex Sensitive	0.063 in	0.126 in	MLCC Surface Mount	X7R	125 °C	-55 °C	Soft Termination	1000 pF	20 %
KYOCERA AVX 1825SC333KAZ1A	1825 (4564 Metric)			Boardflex Sensitive	0.248 in	0.181 in	MLCC Surface Mount	X7R	125 °C	-55 °C	Soft Termination	0.033 µF	10 %	1500 VAC
KYOCERA AVX 1812GC222KAZ1A	1812 (4532 Metric)			Boardflex Sensitive	0.126 in	0.177 in	MLCC Surface Mount	X7R	125 °C	-55 °C	High Voltage Soft Termination	2200 pF	10 %	2000 VAC	0.071 in
KYOCERA AVX 1825WC153KAZ2A	1825 (4564 Metric)			Boardflex Sensitive SMPS Filtering	0.248 in	0.181 in	MLCC Surface Mount	X7R	125 °C	-55 °C	High Voltage Soft Termination	0.015 µF	10 %	2.5 kV	0.134 in
KYOCERA AVX 2225SC473MAZ1A	2225 (5763 Metric)			Boardflex Sensitive	0.248 in	0.224 in	MLCC Surface Mount	X7R	125 °C	-55 °C	Soft Termination	47 nF	20 %	1500 VAC
KYOCERA AVX 1812CC104KAZ2A	1812 (4532 Metric)	630 V	600 V	Boardflex Sensitive	0.126 in	0.177 in	MLCC Surface Mount	X7R	125 °C	-55 °C	Soft Termination	0.1 µF	10 %		0.087 in
KYOCERA AVX 1210GC332KAZ1A	1210 (3225 Metric)			Boardflex Sensitive SMPS Filtering	0.098 in	0.13 in	MLCC Surface Mount	X7R	125 °C	-55 °C	High Voltage Soft Termination	3300 pF	10 %	2000 VAC	0.071 in
KYOCERA AVX 1206CC103KAZ2A	1206 (3216 Metric)	630 V	600 V	Boardflex Sensitive	0.063 in	0.126 in	MLCC Surface Mount	X7R	125 °C	-55 °C	Soft Termination	10000 pF	10 %
KYOCERA AVX 1812WC332KAZ1A	1812 (4532 Metric)			Boardflex Sensitive	0.126 in	0.177 in	MLCC Surface Mount	X7R	125 °C	-55 °C	Soft Termination	3300 pF	10 %	2.5 kV
KYOCERA AVX 1825GC223KAZ1A	1825 (4564 Metric)			Boardflex Sensitive SMPS Filtering	0.248 in	0.181 in	MLCC Surface Mount	X7R	125 °C	-55 °C	High Voltage Soft Termination	0.022 µF	10 %	2000 VAC	0.134 in
