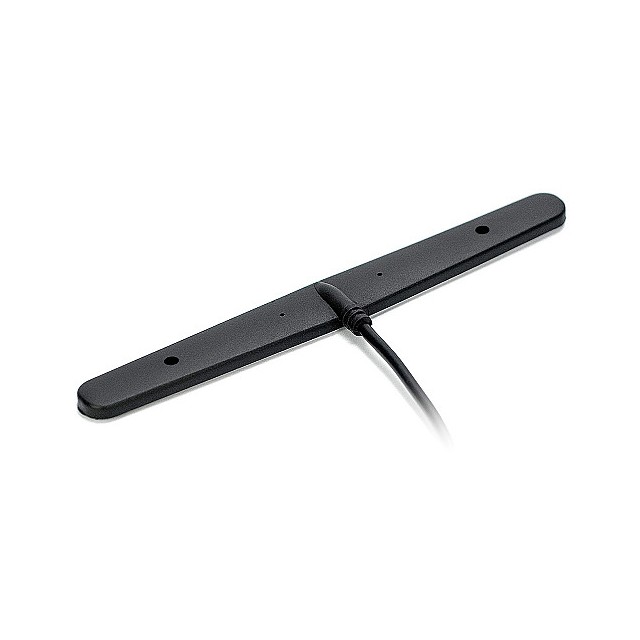

2J5115P-868
Active2J Antennas
TBAR-AQUA 868MHZ ADHESIVE M
2J5115P-868
Active2J Antennas
TBAR-AQUA 868MHZ ADHESIVE M
Description
General part information
2J5115P-868
TBAR-AQUA 868MHZ ADHESIVE M
Technical Specifications
Parameters and characteristics for this part
| Specification | 2J5115P-868 |
|---|---|
| Antenna Type | Flat Bar |
| Applications | LoRa, Sigfox, ISM, Zigbee™ |
| Features | Cable, 3m |
| Frequency (Center/Band) | 866.5 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 870 MHz |
| Frequency Range (Min) | 863 MHz |
| Gain | 2.5 dBi |
| Height (Max) | 0.236 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 25 W |
| RF Family/Standard | General ISM, 802.15.4 |
| Termination Type | SMA Male |
| VSWR | 1.2 |
