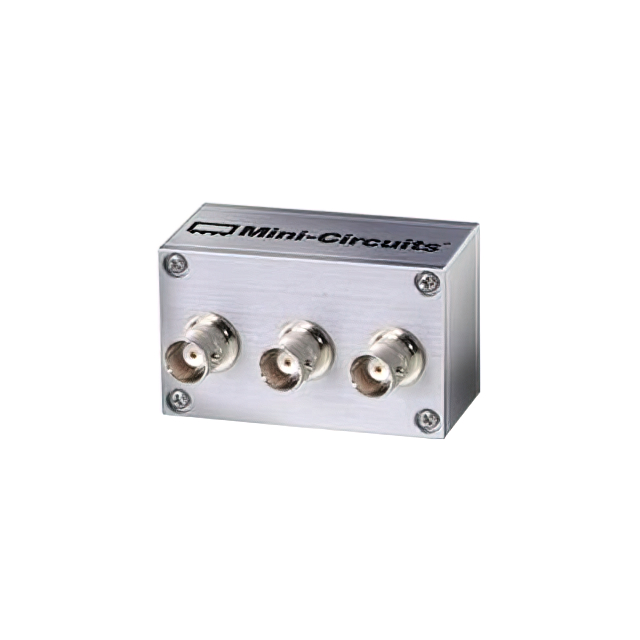

ZSC-2-4+
ActiveMini-Circuits
PWR SPLTR CMBD / BNC / ROHS
ZSC-2-4+
ActiveMini-Circuits
PWR SPLTR CMBD / BNC / ROHS
Description
General part information
ZSC-2-4+
RF Power Divider 10 MHz ~ 1 GHz Isolation (Min) 20dB, 6° Imbalance (Max) BNC In-Line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | ZSC-2-4+ |
|---|---|
| Frequency Range 1 (Max) | 1 GHz |
| Frequency Range 1 (Min) | 10 MHz |
| Imbalance (Max) | 6 ° |
| Insertion Loss | 0.7 dB |
| Isolation (Min) | 20 dB |
| Package / Case | BNC In-Line Module |
| Size / Dimension Height | 1.24 in |
| Size / Dimension Length | 2.014 in |
| Size / Dimension Width | 1.38 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
