TERMINAL,PIDG R 16-14HD 1/4-327743

327743

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #1/4

Find alt
TERMINAL,PIDG R 16-14HD 1/4-327743

327743

Active
TE Connectivity AMP Connectors

CONN RING CIRC 14-16AWG #1/4

Find alt

Description

General part information

327743

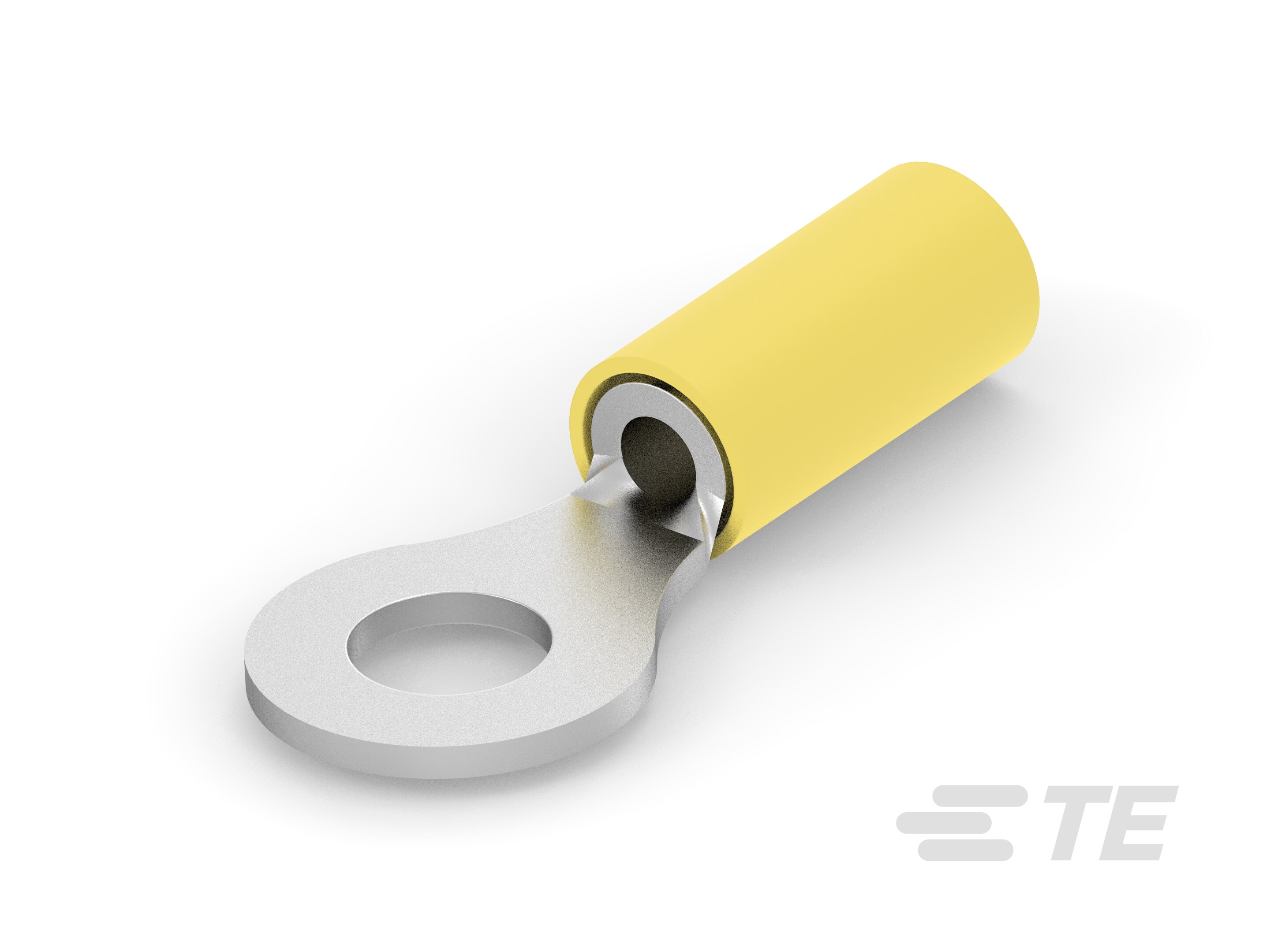

Closed Ring Tongue Terminal, 16 – 14 AWG, M6 Stud, 6.73 mm [.265 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, Partially Insulated, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification327743
ColorBlack Stripe, Yellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination, Heavy Duty
InsulationInsulated
Length - Overall1.296 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.25 Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.048 in
Width - Outer Edges0.531 in
Wire Gauge (AWG) (Max)16 AWG
Wire Gauge (AWG) (Min)14 AWG
