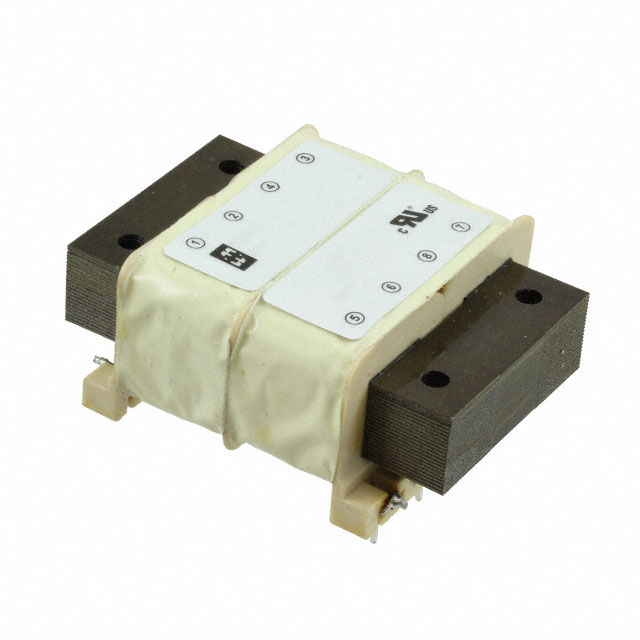

229D16
ActiveHammond Manufacturing
PWR XFMR SEMI-TORO 48VA TH
229D16
ActiveHammond Manufacturing
PWR XFMR SEMI-TORO 48VA TH
Description
General part information
229D16
PWR XFMR SEMI-TORO 48VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | 229D16 |
|---|---|
| Center Tap | No |
| Current - Output (Max) Parallel | 6 A |
| Current - Output (Max) Series | 3 A |
| Height - Seated (Max) | 35.05 mm |
| Mounting Type | Through Hole |
| Power - Max | 48 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 2.5 in |
| Size / Dimension Width | 79.25 mm |
| Termination Style | PC Pin |
| Type | Semi-Toroidal |
| Voltage - Isolation | 1750 V |
| Voltage - Primary | 230V, 115V |
| Voltage - Secondary (Full Load) (Parallel) | 8 V |
| Voltage - Secondary (Full Load) (Series) | 16 V |
| Weight | 1.5 lbs |
