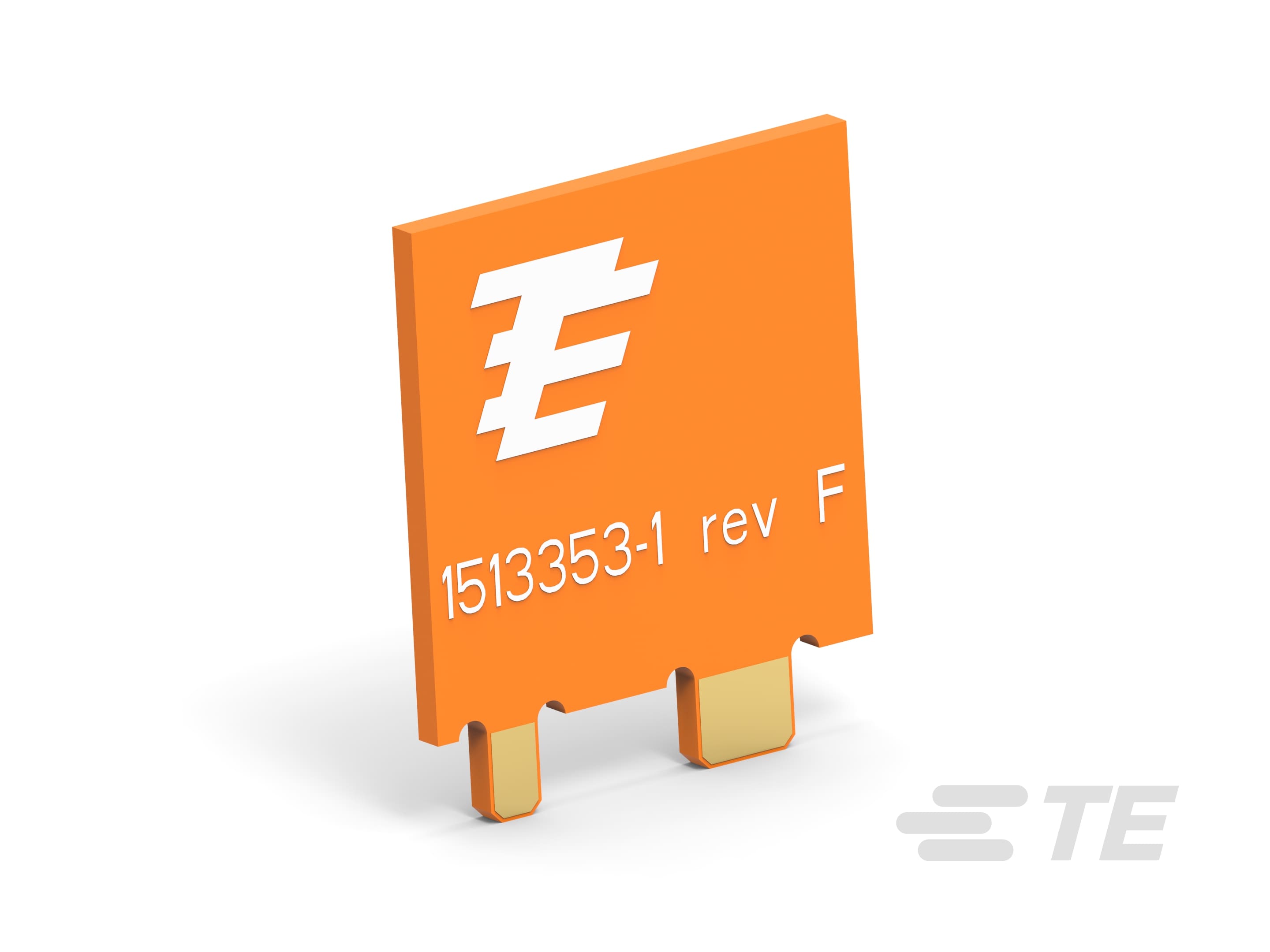

1513353-1
LTBTE Connectivity AMP Connectors
RF ANT 2.4GHZ PCB TRACE SLDR SMD
1513353-1
LTBTE Connectivity AMP Connectors
RF ANT 2.4GHZ PCB TRACE SLDR SMD
Description
General part information
1513353-1
Chip Antenna, Single Band, Bluetooth / Wi-Fi, Internal/Embedded Mount, Through-Hole/Tab Mount, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | 1513353-1 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | WLAN, Bluetooth, Zigbee™ |
| Frequency (Center/Band) | 2.4 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.4835 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 2 dBi |
| Height (Max) | 0.031 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 10 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination | Solder |
| VSWR | 2 |
