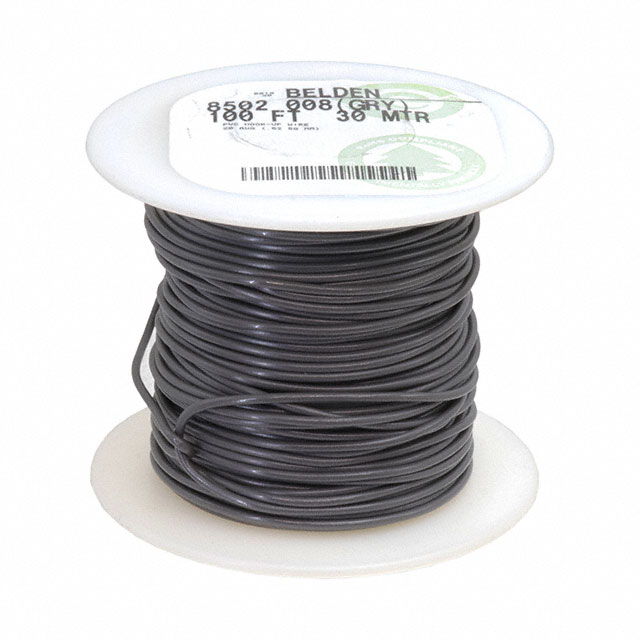

8503 0081000
ActiveBelden Inc.
HOOK-UP STRND 22AWG GRAY
Deep-Dive with AI
Search across all available documentation for this part.
8503 0081000
ActiveBelden Inc.
HOOK-UP STRND 22AWG GRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8503 0081000 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.05 in |
| Jacket (Insulation) Diameter [diameter] | 1.27 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.25 mm |
| Jacket (Insulation) Thickness | 0.01 in |
| Jacket Color | Gray |
| Length | 1000 ft |
| Length | 304.8 m |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Qualification | MIL-W-16878/1 Type B |
| Voltage | 600 V |
| Wire Gauge | 22 AWG |
8503 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Qualification | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Gray | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 30.5 m | 100 ft | 600 V | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Blue | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 600 V | 1000 ft | 304.8 m | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Green | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 30.5 m | 100 ft | 600 V | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Gray | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 600 V | 1000 ft | 304.8 m | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | White Blue Stripe | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 600 V | 1000 ft | 304.8 m | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Brown | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 600 V | 1000 ft | 304.8 m | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Yellow | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 600 V | 1000 ft | 304.8 m | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Violet | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 30.5 m | 100 ft | 600 V | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | Yellow | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 30.5 m | 100 ft | 600 V | ||
Belden Inc. | -40 °C | 105 ░C | Copper Tinned | White Black Stripe | 7 | 30 AWG | MIL-W-16878/1 Type B | Poly-Vinyl Chloride (PVC) | 0.05 in | 1.27 mm | Hook-Up | 22 AWG | 0.25 mm | 0.01 in | 600 V | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.67 | |
Description
General part information
8503 Series
22 AWG Hook-Up Wire 7/30 Gray 600V 1000.0' (304.8m)
