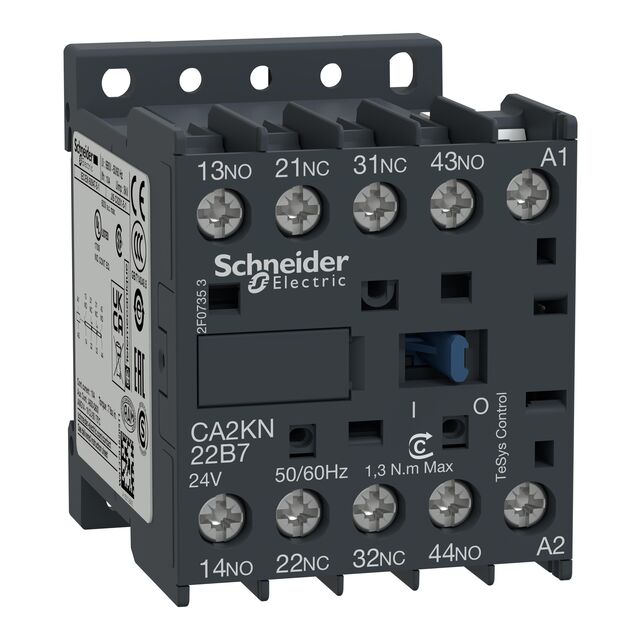

CA2KN22B7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, DPST-NO, DPST-NC, DIN RAIL, PANEL, 600 VAC, 24 V ROHS COMPLIANT: YES
CA2KN22B7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, DPST-NO, DPST-NC, DIN RAIL, PANEL, 600 VAC, 24 V ROHS COMPLIANT: YES
Description
General part information
CA2KN22B7
CONTACTOR, DPST-NO, DPST-NC, DIN RAIL, PANEL, 600 VAC, 24 V ROHS COMPLIANT: YES
Technical Specifications
Parameters and characteristics for this part
| Specification | CA2KN22B7 |
|---|---|
| Coil Voltage | 24 VDC |
| Contact Form | B, PST-2NO/2NC, Form, A, 2 |
| Contact Rating (Current) | 10 A |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 19.2 V |
| Must Release Voltage | 4.8 VAC |
| Operate Time | 20 ms |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -25 °C |
| Pin Count | 4 |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
