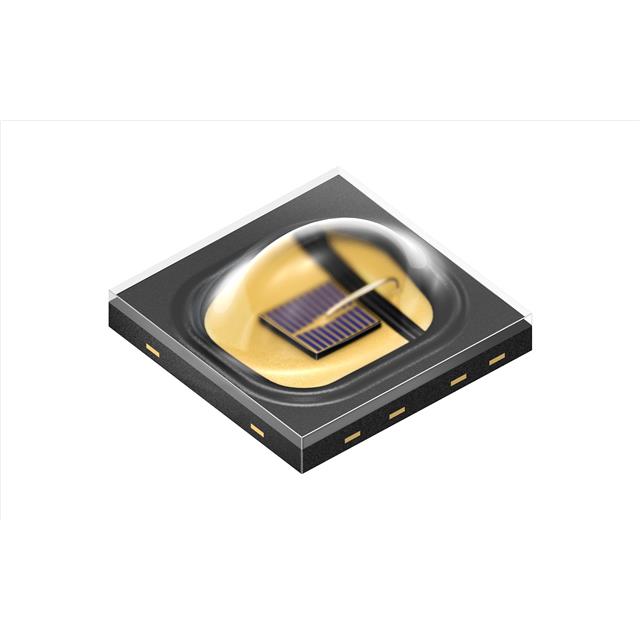

SFH 47267AS A01
Activeams-OSRAM USA INC.
NEW 940NM OSLON BLACK IR LEDS CU
SFH 47267AS A01
Activeams-OSRAM USA INC.
NEW 940NM OSLON BLACK IR LEDS CU
Description
General part information
SFH 47267AS A01
Infrared (IR) Emitter 2.75V 1.5A 355mW/sr @ 1.5A 135° 1515 (3838 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | SFH 47267AS A01 |
|---|---|
| Current - DC Forward (If) (Max) | 1.5 A |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Top View |
| Package / Case | 1515 (3838 Metric) |
| Radiant Intensity (Ie) Min | 355 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle | 135 ° |
| Voltage - Forward (Vf) (Typ) | 2.75 V |
