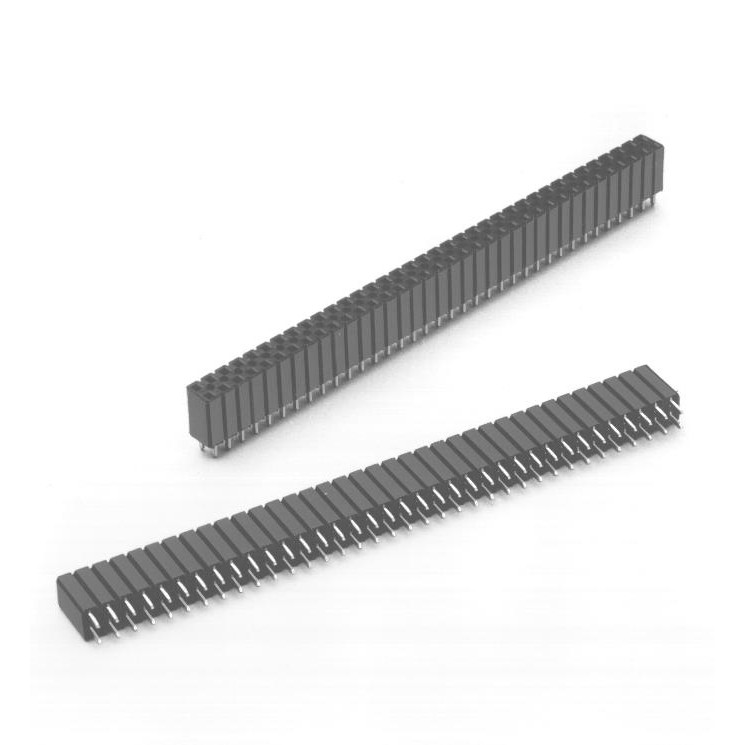

929852-01-07-RB
Active3M Electronic Specialty
80001244211 929852-01-07-RB=14/2R/BM SKT/.100/STR/.125/30AVE
929852-01-07-RB
Active3M Electronic Specialty
80001244211 929852-01-07-RB=14/2R/BM SKT/.100/STR/.125/30AVE
Description
General part information
929852-01-07-RB
80001244211 929852-01-07-RB=14/2R/BM SKT/.100/STR/.125/30AVE
Technical Specifications
Parameters and characteristics for this part
| Specification | 929852-01-07-RB |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 µin |
| Contact Length - Post | 0.125 in |
| Contact Type | Forked |
| Current Rating | 2 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.325 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Style | Board |
| Termination | Solder |
| Voltage Rating | 1500 V |
