RP60300R0100JNBK
ObsoleteKYOCERA AVX
RES CHAS MNT 100 OHM 5% 20W
RP60300R0100JNBK
ObsoleteKYOCERA AVX
RES CHAS MNT 100 OHM 5% 20W
Description
General part information

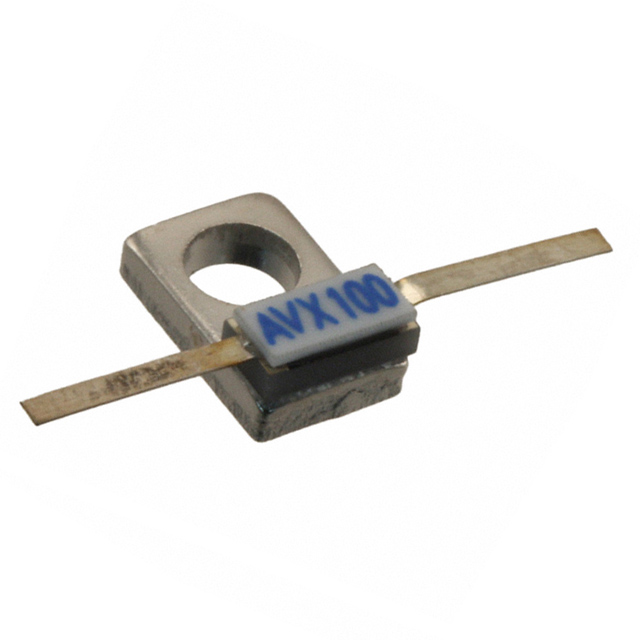

RP60300R0100JNBK
100 Ohms ±5% 20W Thin Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | RP60300R0100JNBK |
|---|---|
| Coating | Aluminum Oxide |
| Composition | Thin Film |
| Height - Seated (Max) | 0.15 in |
| Housing Type | Aluminum Oxide |
| Lead Style | Tab |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 20 W |
| Resistance | 100 Ohms |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.2 in |
| Temperature Coefficient | 150 ppm/¯C |
| Tolerance | 5 % |
