PRESSURE TRANSMITTER, GAUGE, 0 TO 100PSI
PT30-100PSIG-1-1-2-8
ActiveNOSHOK, Inc.
PRESSURE TRANSMITTER, GAUGE, 0 TO 100PSI
Description
General part information
PT30-100PSIG-1-1-2-8

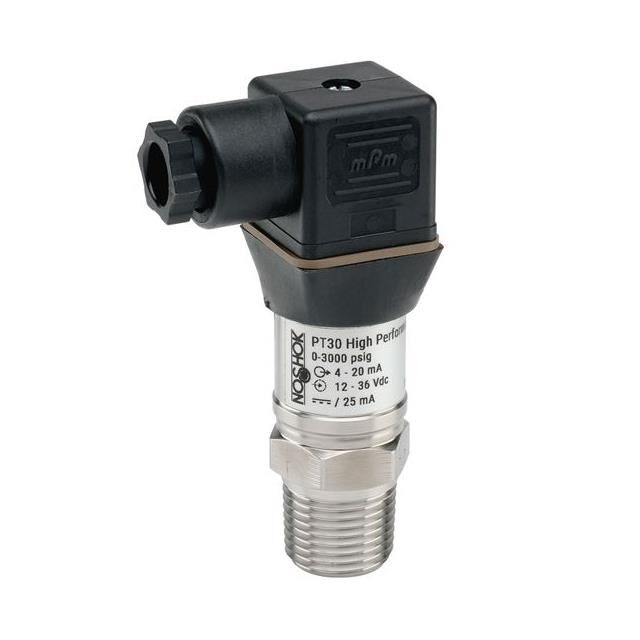

PT30-100psig-1-1-2-8 is a PT30 series high performance fixed range pressure transmitter. Typical applications include hydraulics & pneumatics, automotive, pumps & compressors, refrigeration controls, mobile equipment and general industrial.
Technical Specifications
Parameters and characteristics for this part
| Specification | PT30-100PSIG-1-1-2-8 |
|---|---|
| Accuracy | 0.25 % |
| Applications | Industrial Automation, Industrial |
| Features | Temperature Compensated |
| Maximum Pressure | 300 PSI |
| Operating Pressure | 100 PSI |
| Operating Pressure (Max) | 100 PSI |
| Operating Pressure (Min) | 0 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -20 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.25 " |
| Port Feature | NPT |
| Port Gender | Male |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | Connector, DIN EN 175301-803 Form A |
| Voltage - Supply (Maximum) | 36 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
