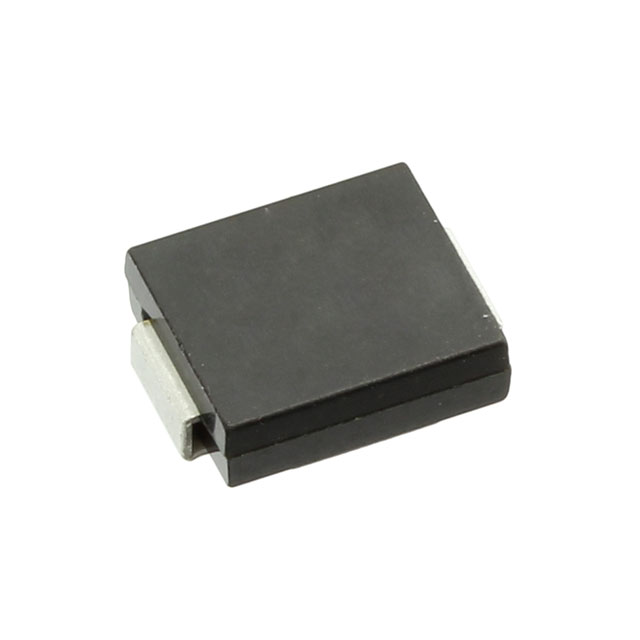

US5JC-HF

Active

Comchip Technology

DIODE SWITCHING 600V 5A 2-PIN SMC T/R

Search across all available documentation for this part.

Active

Comchip Technology

DIODE SWITCHING 600V 5A 2-PIN SMC T/R

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	US5JC-HF	US5J Series

	-	-
Capacitance @ Vr, F	50 pF	50 pF
Current - Average Rectified (Io)	5 A	5 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SMC, DO-214AB	SMC, DO-214AB
Reverse Recovery Time (trr)	75 ns	75 ns
Speed	200 mA, 500 ns	200 - 500 mA
Supplier Device Package	DO-214AB (SMC)	DO-214AB (SMC)
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V	600 V
Voltage - Forward (Vf) (Max) @ If	1.65 V	1.65 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DIODE SWITCHING 600V 5A 2-PIN SMC T/R

Part	Reverse Recovery Time (trr)	Package / Case	Supplier Device Package	Current - Average Rectified (Io)	Technology	Speed	Mounting Type	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - Forward (Vf) (Max) @ If	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max) [Max]
Comchip Technology US5JC-HF	75 ns	DO-214AB, SMC	DO-214AB (SMC)	5 A	Standard	200 mA, 500 ns	Surface Mount	150 °C	-55 °C	1.65 V	50 pF	5 µA	600 V
Comchip Technology US5JC-HF

General part information

Diode 600 V 5A Surface Mount DO-214AB (SMC)
