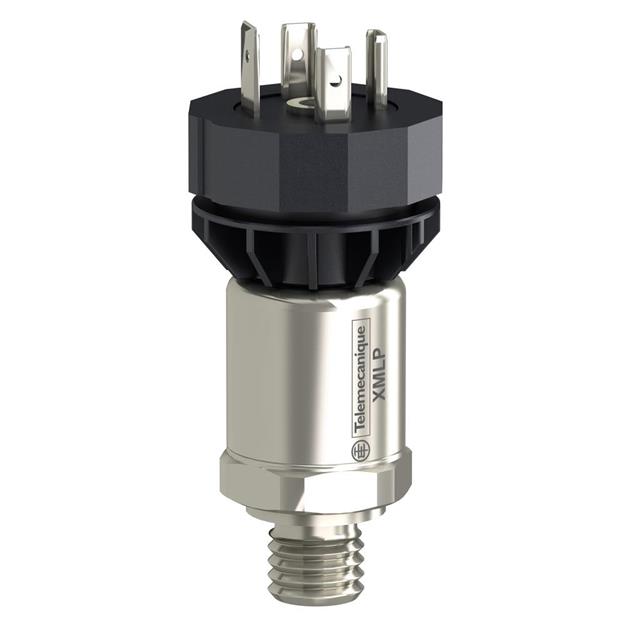

XMLP060BC21F
ActiveSCHNEIDER ELECTRIC
ELECTRONIC PRESSURE SENSORS, PRE
XMLP060BC21F
ActiveSCHNEIDER ELECTRIC
ELECTRONIC PRESSURE SENSORS, PRE
Description
General part information
XMLP060BC21F
ELECTRONIC PRESSURE SENSORS, PRE
Technical Specifications
Parameters and characteristics for this part
| Specification | XMLP060BC21F |
|---|---|
| Accuracy | 0.5 % RH |
| Applications | Industrial Automation |
| Maximum Pressure | 2610.68 PSI |
| Operating Pressure | 870.2 PSI |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output Current (Max) | 20 mA |
| Output Current (Min) | 4 mA |
| Output Type | Analog Current |
| Package / Case | Threaded, Cylinder |
| Port Diameter | 0.25 " |
| Port Feature | GA |
| Port Gender | Male |
| Port Style | Threaded |
| Termination Style | Quick Connects |
| Voltage - Supply (Maximum) | 33 V |
| Voltage - Supply (Minimum) | 7 V |
