AMCM-1102
ObsoletePasternack
CONMC CARD MALE CRIMP LMR100
AMCM-1102
ObsoletePasternack
CONMC CARD MALE CRIMP LMR100
Description
General part information
AMCM-1102

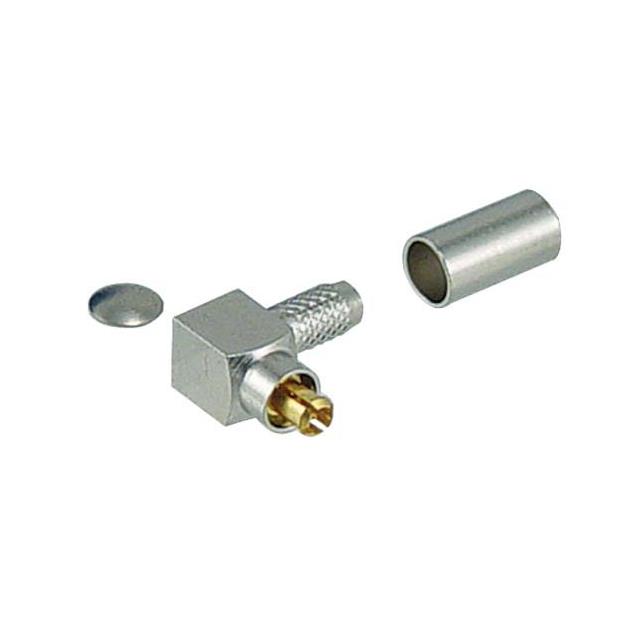

MC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | AMCM-1102 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 316, 179, RG-174 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
