1989191
ActivePhoenix Contact

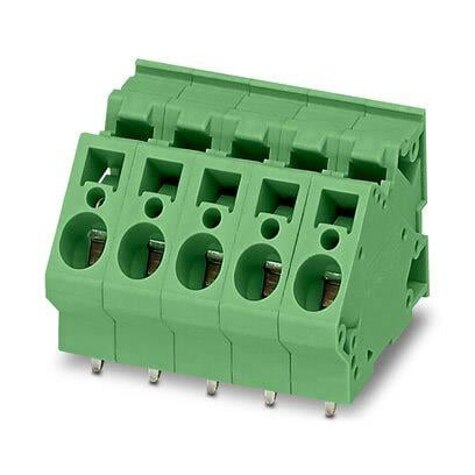

FIXED TERMINAL BLOCKS ZFKDSA4-75-5
1989191
ActivePhoenix Contact
FIXED TERMINAL BLOCKS ZFKDSA4-75-5
Description
General part information
1989191
FIXED TERMINAL BLOCKS ZFKDSA4-75-5
Technical Specifications
Parameters and characteristics for this part
| Specification | 1989191 |
|---|---|
| Color | Green |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.295 in |
| Positions Per Level | 5 |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 10 AWG |
| Wire Termination | Spring Cage, Screwless, Tension Clamp |
