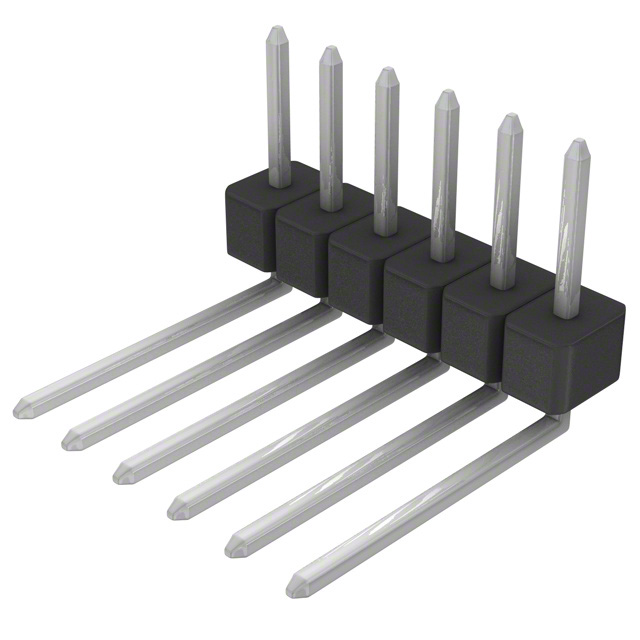

PEC06SBDN

Active

Sullins Connector Solutions

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC06SBDN

Active

Sullins Connector Solutions

CONN HEADER R/A 6POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC06SBDN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.4 in
Contact Length - Post [x]	10.16 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	3.56 mm
Insulation Height	0.14 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC06 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Length - Mating [x]	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Insulation Height	Insulation Height	Insulation Material	Insulation Color	Fastening Type	Number of Positions	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish - Post	Mounting Type	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Termination	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Number of Positions Loaded	Contact Length - Mating [x]	Overall Contact Length	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PEC06DACN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm	16.51 mm	0.65 in	2.54 µm	100 µin	Breakaway Header	0.32 in	8.13 mm	UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	12	2	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole	3 A	2.54 mm	0.1 in	Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All
Sullins Connector Solutions PEC06SFCN	2.54 çm	100 çin	Male Pin	0.318 "			18.75 mm	2.54 µm	100 µin	Breakaway Header	0.32 in	8.13 mm	UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	6	1	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole	3 A			Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All	8.08 mm	0.738 "
Sullins Connector Solutions PEC06DBBN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm			2.54 µm	100 µin	Breakaway Header	0.2 in	5.08 mm	UL94 V-0	0.24 in	6.1 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	12	2	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole Right Angle	3 A	2.54 mm	0.1 in	Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All
Sullins Connector Solutions PEC06SBDN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm			2.54 µm	100 µin	Breakaway Header	0.4 in	10.16 mm	UL94 V-0	0.14 in	3.56 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	6	1	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole Right Angle	3 A			Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All
Sullins Connector Solutions PEC06SBEN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm			2.54 µm	100 µin	Breakaway Header			UL94 V-0	0.14 in	3.56 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	6	1	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole Right Angle	3 A			Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All			12.7 mm	0.5 in
Sullins Connector Solutions PEC06DBAN-M71	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm			2.54 µm	100 µin	Breakaway Header	0.12 in	3.05 mm	UL94 V-0			Polybutylene Terephthalate (PBT)	Black	Push-Pull	12	2	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole Right Angle	3 A	2.54 mm	0.1 in	Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All
Sullins Connector Solutions PEC06SFDN	2.54 çm	100 çin	Male Pin	0.318 "			21.29 mm	2.54 µm	100 µin	Breakaway Header	0.42 in	10.67 mm	UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	6	1	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole	3 A			Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All	8.08 mm	0.838 in
Sullins Connector Solutions PEC06SAEN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm		21.59 mm	2.54 µm	100 µin	Breakaway Header			UL94 V-0	0.1 in	2.54 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	6	1	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole	3 A			Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All		0.85 in	13.21 mm	0.52 "
Sullins Connector Solutions PEC06DBEN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm			2.54 µm	100 µin	Breakaway Header			UL94 V-0	0.24 in	6.1 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	12	2	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole Right Angle	3 A	2.54 mm	0.1 in	Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All			12.7 mm	0.5 in
Sullins Connector Solutions PEC06DBAN	2.54 çm	100 çin	Male Pin	0.23 in	5.84 mm			2.54 µm	100 µin	Breakaway Header			UL94 V-0	0.24 in	6.1 mm	Polybutylene Terephthalate (PBT)	Black	Push-Pull	12	2	125 °C	-65 ░C	Phosphor Bronze	Tin	Through Hole Right Angle	3 A	2.54 mm	0.1 in	Board to Board Cable	Solder	Square	0.1 in	2.54 mm	Unshrouded	All			2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.89
		10	$ 0.75
		100	$ 0.67
		500	$ 0.55
		1000	$ 0.49
		5000	$ 0.44

Description

General part information

PEC06 Series

Connector Header Through Hole, Right Angle 6 position 0.100" (2.54mm)
