2904957
ActivePhoenix Contact

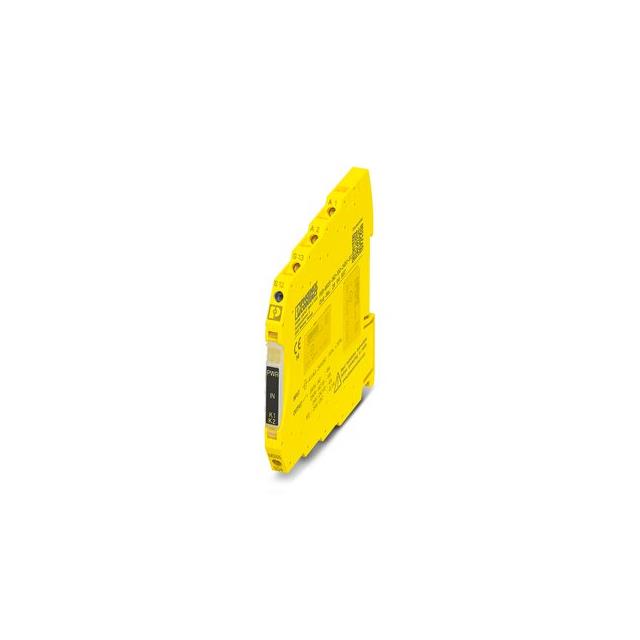

PSR-MS55-1NO-1DO-24DC-SC
2904957
ActivePhoenix Contact
PSR-MS55-1NO-1DO-24DC-SC
Description
General part information
2904957
PSR-MS55-1NO-1DO-24DC-SC
Technical Specifications
Parameters and characteristics for this part
| Specification | 2904957 |
|---|---|
| Coil Current | 42 mA |
| Coil Power | 1 W |
| Coil Resistance | 571.4 Ohms |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator |
| Form A Count | 1 |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Screw Terminal |
