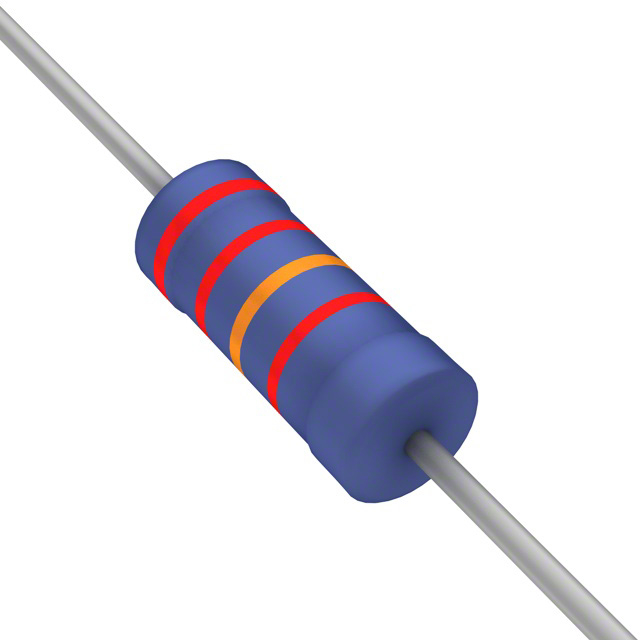

RSF1GB22K0
ActiveStackpole Electronics Inc
RES 22K OHM 2% 1W AXIAL
RSF1GB22K0
ActiveStackpole Electronics Inc
RES 22K OHM 2% 1W AXIAL
Description
General part information
RSF1GB22K0
22 kOhms ±2% 1W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Oxide Film
Technical Specifications
Parameters and characteristics for this part
| Specification | RSF1GB22K0 |
|---|---|
| Composition | Metal Oxide Film |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 235 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 1 W |
| Resistance | 22 kOhm |
| Size / Dimension Diameter | 0.177 in |
| Size / Dimension Length | 0.433 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 2 % |
