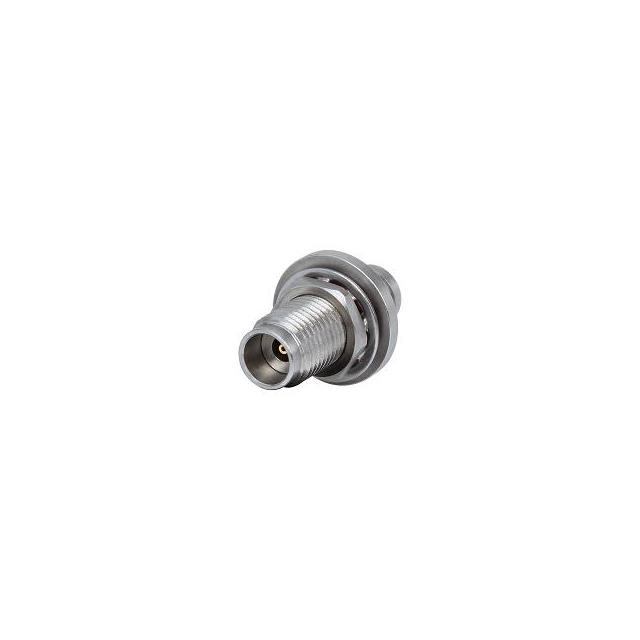

24FPM-24F+

Active

MINI-CIRCUITS

ADPTR VF/VF 50GHZ PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	24FPM-24F+	- Series

1st Connector	-	SMA Plug, 2.92mm Plug
1st Connector Mounting Type	-	Free Hanging (In-Line)
1st Contact Gender	-	Male
2nd Connector	-	SMA Plug, N-Type Plug
2nd Connector	-	2.92 mm
2nd Connector Mounting Type	-	Free Hanging (In-Line)
2nd Contact Gender	-	Male
Adapter Series	-	SMA to SMA, N to N, BNC to BNC, BNC to N, SMA to RP-SMA, SMA to 3.5mm
Adapter Series [Max]	2.4 mm	2.4 - 3.5 mm
Adapter Series [Min]	2.4 mm	1.85 - 3.5 mm
Adapter Type	Jack to Jack	Plug to Jack, Jack to Jack, Plug to Plug
Attenuation Value	-	0 - 15 dB
Attenuation Value	-	4 - 20 dB
Body Material	Stainless Steel	Stainless Steel, Brass
Center Gender	Female to Female	Female to Female, Male to Male
Color	-	Blue
Connector Style	-	SMA, N Type, BNC
Connector Style	-	2.92 mm
Connector Type	-	Female Socket, Jack, Male Pin, Plug
Conversion Type	Same Series	Same Series, Between Series
Convert From (Adapter End)	2.4 mm	1.85 - 2.92 mm
Convert From (Adapter End)	-	SMA Plug, Male Pin, Female Socket, SMA Jack, OS-2.9, Jack, Female Socket, N Jack, 3.5mm Jack, Female Socket, 3.5mm Plug, Male Pin, N Plug, Male Pin, BNC Plug, Male Pin, 1.85mm Jack, Female Socket, RP-SMA Plug, Plug, Male Pin
Convert To (Adapter End)	2.4 mm	2.4 - 2.92 mm
Convert To (Adapter End)	-	SMA Jack, Female Socket, N Jack, OS-2.9 Jack, Female Socket, 3.5mm Jack, BNC Jack, SMA Plug, Male Pin, N Plug, 2.92mm (OS-2.9) Plug, Male Pin, 2.4mm (APC-2.4, OS-50) Plug, Male Pin
Fastening Type	-	Bayonet Lock, Threaded
Features	-	Chain
Frequency - Max [Max]	50 GHz	2 - 6000 GHz
Frequency Range	-	8 GHz
Frequency Range	-	0 Hz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.11 dB	0.03 - 0.5 dB
Length	-	91.44 - 1200 cm
Length	-	24 - 48 in
Length	-	4 ft
Mating Cycles	-	500
Mounting Feature	Bulkhead	Flange, Bulkhead
Mounting Type	-	Free Hanging, Cap, Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	100 °C	28 - 125 °C
Operating Temperature [Min]	-55 °C	-65 - 18 °C
Overall Impedance	-	50 Ohms
Package / Case	-	4-SMD, No Lead
Power (Watts)	-	0.5 W
Style	Straight	Straight, Right Angle, SMA to SMA, SMA to N-Type
Style	-	2.92 mm
Style	-	2.92 mm

- Series

TERM / SMA-F / 18GHZ 1W ROHS

...

Part	Connector Style	Mounting Type	Frequency - Max [Max]	Impedance	Connector Type	Frequency Range [Max]	Frequency Range [Min]	Power (Watts)	Package / Case	Body Material	Conversion Type	Adapter Series	Convert From (Adapter End)	Style	Adapter Type	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Center Gender	Adapter Series [Max]	Adapter Series [Min]	Convert To (Adapter End)	Convert From (Adapter End)	Insertion Loss
MINI-CIRCUITS ANNEF-50+	SMA	Cap, Free Hanging	18 GHz	50 Ohms	Female Socket, Jack
MINI-CIRCUITS GAT-5+				50 Ohms		8 GHz	0 Hz	0.5 W	4-SMD, No Lead
MINI-CIRCUITS BLK-18-S+		Free Hanging (In-Line)	18 GHz	50 Ohms						Stainless Steel	Same Series	SMA to SMA	SMA Plug, Male Pin	Straight	Plug to Jack	Female Socket, SMA Jack	100 °C	-55 °C
MINI-CIRCUITS NFFL-SF50+			18 GHz	50 Ohms							Between Series		Female Socket, SMA Jack	Straight	Jack to Jack	Female Socket, N Jack	100 °C	-45 °C	Flange	Female to Female
MINI-CIRCUITS NF-SM50+		Free Hanging (In-Line)	18 GHz	50 Ohms						Stainless Steel	Between Series		SMA Plug, Male Pin	Straight	Plug to Jack	Female Socket, N Jack	100 °C	-55 °C
MINI-CIRCUITS KFPM-KF50+			40 GHz	50 Ohms						Stainless Steel	Same Series		Jack, Female Socket, OS-2.9	Straight	Jack to Jack	OS-2.9 Jack, Female Socket	100 °C	-55 °C	Bulkhead	Female to Female	2.92 mm	2.92 mm	2.92 mm	2.92 mm	0.12 dB
MINI-CIRCUITS ANNE-50+	SMA	Cap, Free Hanging	18 GHz	50 Ohms	Male Pin, Plug
MINI-CIRCUITS NFFL-NF50+			9 GHz	50 Ohms						Stainless Steel	Same Series	N to N	Female Socket, N Jack	Straight	Jack to Jack	Female Socket, N Jack	100 °C	-55 °C	Flange	Female to Female					0.05 dB
MINI-CIRCUITS 35F-35F50+		Free Hanging (In-Line)	18 GHz	50 Ohms						Stainless Steel	Same Series		3.5mm Jack, Female Socket	Straight	Jack to Jack	3.5mm Jack, Female Socket	100 °C	-55 °C		Female to Female	3.5 mm	3.5 mm
MINI-CIRCUITS BLK-18W-S+		Free Hanging (In-Line)	18 GHz	50 Ohms							Same Series	SMA to SMA	SMA Plug, Male Pin	Straight	Plug to Jack	Female Socket, SMA Jack	125 °C	-65 ░C
