B33364A5206J050
ObsoleteEPCOS - TDK Electronics
CAP FILM 20UF 5% 440VAC RADIAL
B33364A5206J050
ObsoleteEPCOS - TDK Electronics
CAP FILM 20UF 5% 440VAC RADIAL
Description
General part information
B33364A5206J050

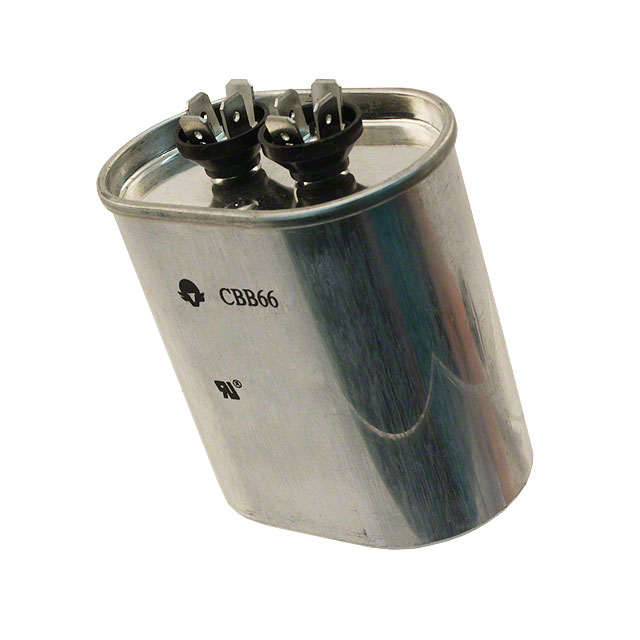

20 µF Film Capacitor 440V Polypropylene (PP) Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | B33364A5206J050 |
|---|---|
| Applications | Motor Run |
| Capacitance | 20 µF |
| Dielectric Material | Polypropylene (PP) |
| Height - Seated (Max) | 2.638 in |
| Lead Spacing | 0.787 in |
| Mounting Type | Bracket, Chassis Mount, Requires Holder |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 2.756 in |
| Size / Dimension Width | 1.772 in |
| Termination | Disconnect, Quick Connect |
| Tolerance | 5 % |
| Voltage Rating - AC | 440 V |
