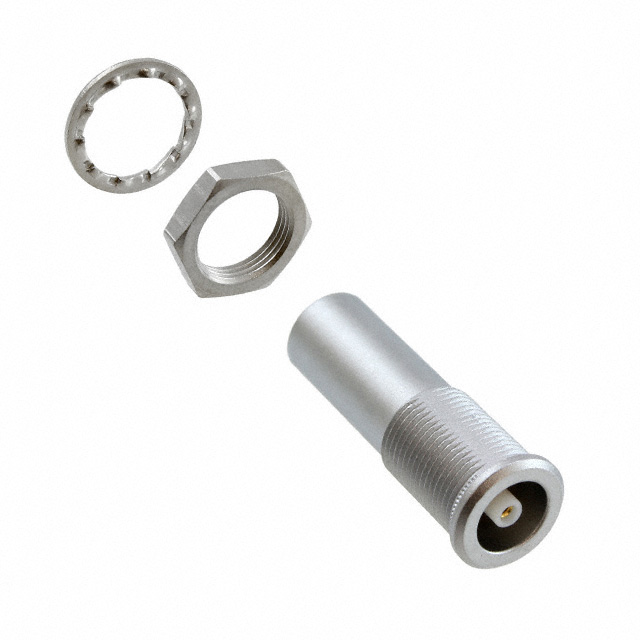

RAD.00.250.NTM

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Search across all available documentation for this part.

Active

LEMO

CONN ADAPT JACK-JACK NIM-CAMAC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RAD.00.250.NTM	RAD.00.250 Series

Adapter Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Chrome, Nickel
Body Material	Brass	Brass
Center Contact Material	Bronze	Bronze
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	NIM-CAMAC CD/N 549 Jack, Female Socket	NIM-CAMAC CD/N 549 Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polyetheretherketone (PEEK), Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP50	IP50
Mating Cycles	500	500
Mounting Feature	Bulkhead	Bulkhead
Style	Straight	Straight

CONN ADAPT JACK TO JACK 50 OHM

Part	Fastening Type	Impedance	Ingress Protection	Conversion Type	Adapter Series	Center Gender	Mounting Feature	Center Contact Plating	Body Material	Center Contact Material	Adapter Type	Dielectric Material	Body Finish	Convert From (Adapter End)	Includes	Mating Cycles	Style
LEMO RAD.00.250.CLM	Push-Pull	50 Ohms	IP50	Same Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Female to Female	Bulkhead	Gold	Brass	Bronze	Jack to Jack	Polyetheretherketone (PEEK)	Chrome	NIM-CAMAC CD/N 549 Jack, Female Socket
LEMO RAD.00.250.CTM	Push-Pull	50 Ohms	IP50	Same Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Female to Female	Bulkhead	Gold	Brass	Bronze	Jack to Jack	Polytetrafluoroethylene (PTFE)	Chrome	NIM-CAMAC CD/N 549 Jack, Female Socket	1 Connector, 1 Lockwasher, 1 Nut	500	Straight
LEMO RAD.00.250.NTM	Push-Pull	50 Ohms	IP50	Same Series	NIM-CAMAC CD/N 549 to NIM-CAMAC CD/N 549	Female to Female	Bulkhead	Gold	Brass	Bronze	Jack to Jack	Polytetrafluoroethylene (PTFE)	Nickel	NIM-CAMAC CD/N 549 Jack, Female Socket	1 Connector, 1 Lockwasher, 1 Nut	500	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NIM-CAMAC CD/N 549 Jack, Female Socket To NIM-CAMAC CD/N 549 Jack, Female Socket 50 Ohms
