140-512-415-100

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 12 P.

Search across all available documentation for this part.

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 12 P.

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-512-415-100	140-512 Series

Color	-	Natural
Connector Type	Header	Header, Receptacle
Contact Finish - Post	Tin	Tin
Contact Length - Post [x]	0.134 in	0.134 in
Contact Length - Post [x]	3.4 mm	3.4 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Male Pin, Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Solder Retention, Polarizing Key
Insulation Color	Natural	Natural
Insulation Height	0.185 in	0.185 in
Insulation Height	4.7 mm	4.7 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA9T), Nylon 9T, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Right Angle, Through Hole, Right Angle, Free Hanging (In-Line)
Note	-	Contacts Not Included
Number of Positions	12	12
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	100 VAC	100 VAC

2.0MM PITCH CONNECTOR WITH 12 SU

Part	Style	Contact Finish - Post	Mounting Type	Current Rating (Amps)	Insulation Height [custom]	Insulation Height [custom]	Insulation Color	Contact Type	Number of Positions Loaded	Contact Shape	Termination	Number of Positions	Voltage Rating	Material Flammability Rating	Fastening Type	Contact Material	Number of Rows	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Note	Pitch [x]	Pitch [x]	Color	Contact Termination
EDAC Inc. 140-512-417-060	Board to Cable/Wire	Tin	Surface Mount, Right Angle	2 A	5.51 mm	0.217 in	Natural	Male Pin	All	Square	Solder	12	100 VAC	UL94 V-0	Detent Lock	Brass	1	Nylon 9T, Polyamide (PA9T)	0.079 in	2 mm	Solder Retention	Header	-25 °C	85 °C	Shrouded - 4 Wall
EDAC Inc. 140-512-415-100	Board to Cable/Wire	Tin	Through Hole, Right Angle	2 A			Natural	Male Pin	All	Square	Solder	12	100 VAC	UL94 V-0	Detent Lock	Brass	1	Polyamide (PA66), Nylon 6/6	0.079 in	2 mm		Header	-40 °C	105 ░C	Shrouded - 4 Wall	0.185 in	4.7 mm	0.134 in	3.4 mm
EDAC Inc. 140-512-210-011			Free Hanging (In-Line)					Female Socket				12			Detent Lock		1	Polyamide (PA66), Nylon 6/6			Polarizing Key	Receptacle	-25 °C	85 °C						Contacts Not Included	0.079 in	2 mm	Natural	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.19

General part information

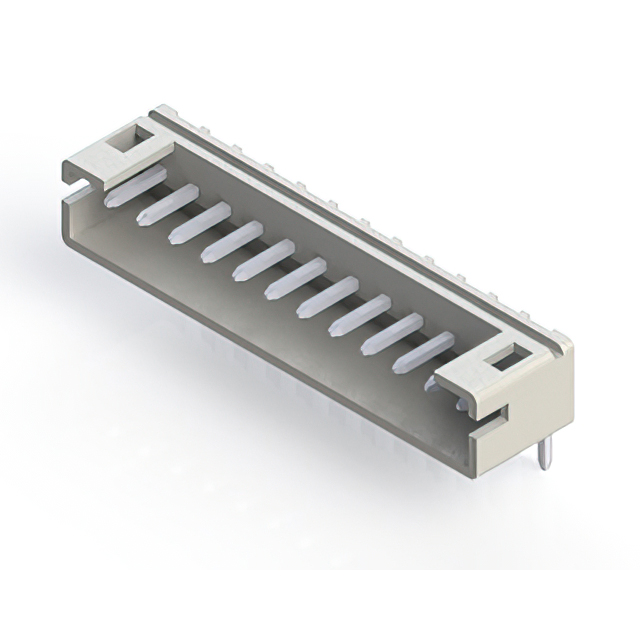

Connector Header Through Hole, Right Angle 12 position 0.079" (2.00mm)
