HHR-450AB21F2X3
ActivePanasonic Energy
BATTERY PACK NIMH 7.2V L-FAT A
HHR-450AB21F2X3
ActivePanasonic Energy
BATTERY PACK NIMH 7.2V L-FAT A
Description
General part information
HHR-450AB21F2X3

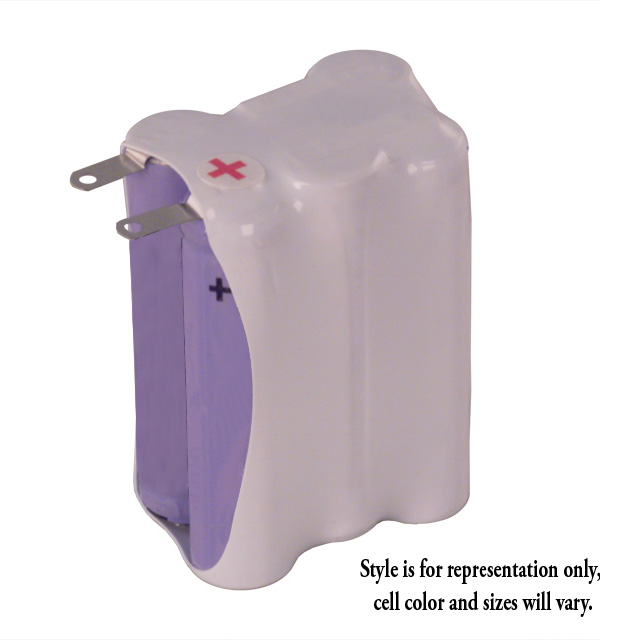

L-Fat A 7.2 V Nickel Metal Hydride Battery Pack
Technical Specifications
Parameters and characteristics for this part
| Specification | HHR-450AB21F2X3 |
|---|---|
| Battery Cell Size | L-Fat, L-Fat A, A |
| Battery Chemistry | Nickel Metal Hydride |
| Capacity (Charge) | 4.2 Ah |
| Note | Battery packs made with NIMH cells include a thermostat. |
| Number of Cells | 6 |
| Rechargeability | Yes |
| Size / Dimension Height | 2.64 in |
| Size / Dimension Length | 2.15 in |
| Size / Dimension Width | 1.43 in |
| Structure | Side to Side |
| Structure Cells | 2 |
| Structure Rows | 3 |
| Termination Style | Solder Tab |
| Voltage - Rated | 7.2 VDC |
| Weight | 360.15 g |
