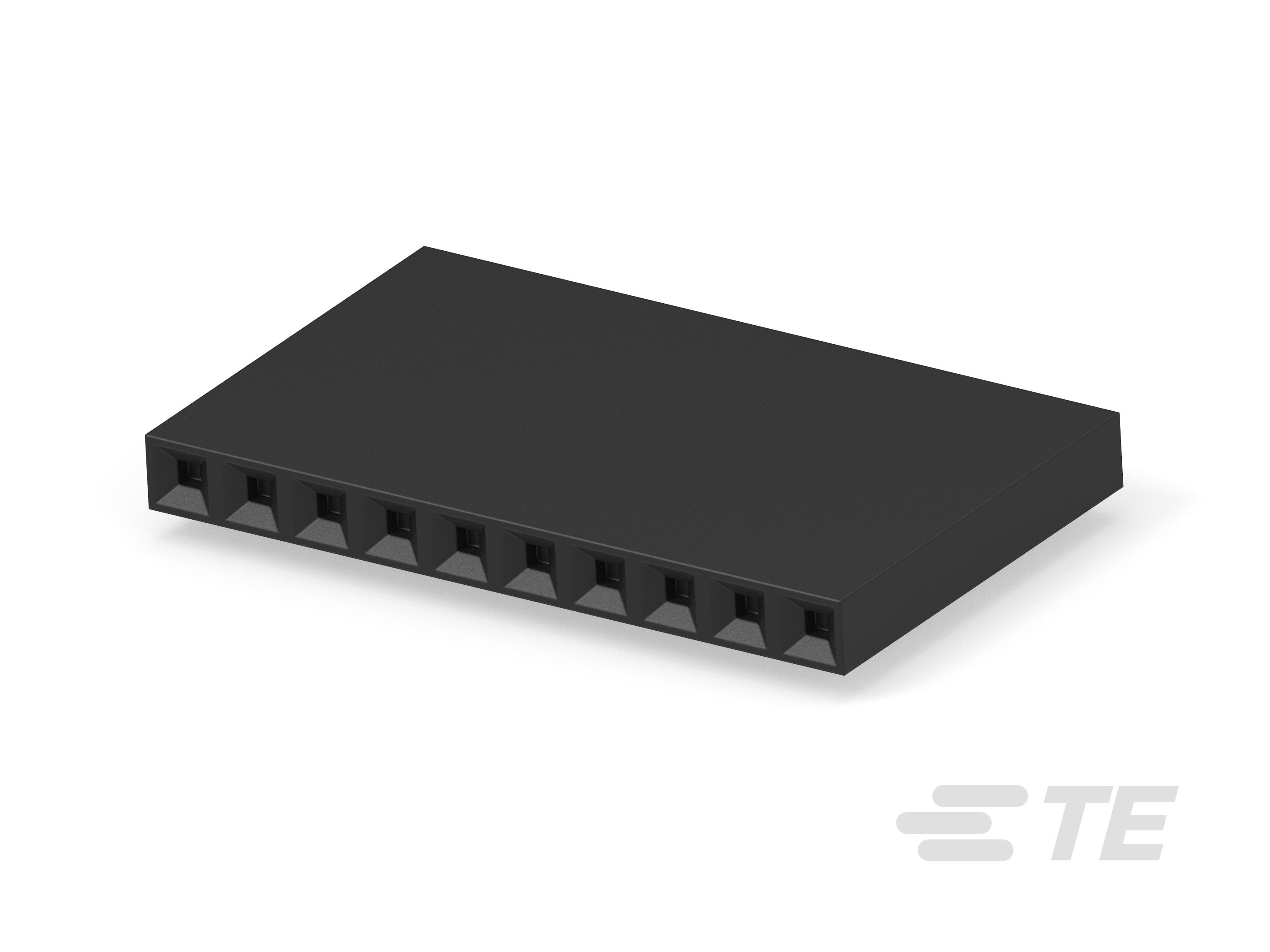

CONNECTOR HOUSING, AMPMODU MTE, SOCKET, 10 POSITIONS, 2.54 MM, AMPMODU MTE SERIES CONTACTS

Find alt

Alpha

103648-9

Active

TE Connectivity AMP Connectors

CONNECTOR HOUSING, AMPMODU MTE, SOCKET, 10 POSITIONS, 2.54 MM, AMPMODU MTE SERIES CONTACTS

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

AMPMODU MTE Series

The AMPMODU MTE series Interconnection System is utilized in wire-to-board and wire-to-wire applications. The product implements insulation displacement contacts (IDC) or crimp snap-in contacts to suit customer's needs. The coupling shrouds permit ganging of smaller receptacle and pin assemblies with guide ribs to form larger single or double row latching connectors.

Technical Specifications

Parameters and characteristics for this part

Specification	103648-9

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch	0.1 in

AMPMODU MTE Series

...

Part	Number of Rows	Color	Number of Positions	Connector Type	Pitch	Operating Temperature (Max)	Operating Temperature (Min)	Contact Termination	Contact Type	Mounting Type	Insulation Material	Fastening Type	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Contact Finish	Cable Termination	Wire Type	Contact Finish Thickness	Shrouding	Features	Material Flammability Rating	Style	Contact Length - Mating	Pitch - Mating	Termination	Contact Finish - Mating	Insulation Height	Current Rating	Contact Material	Contact Length - Post	Number of Positions Loaded	Contact Shape	Insulation Color	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Applications	Overall Contact Length	Pin or Socket
