9037HR32
ActiveSCHNEIDER ELECTRIC

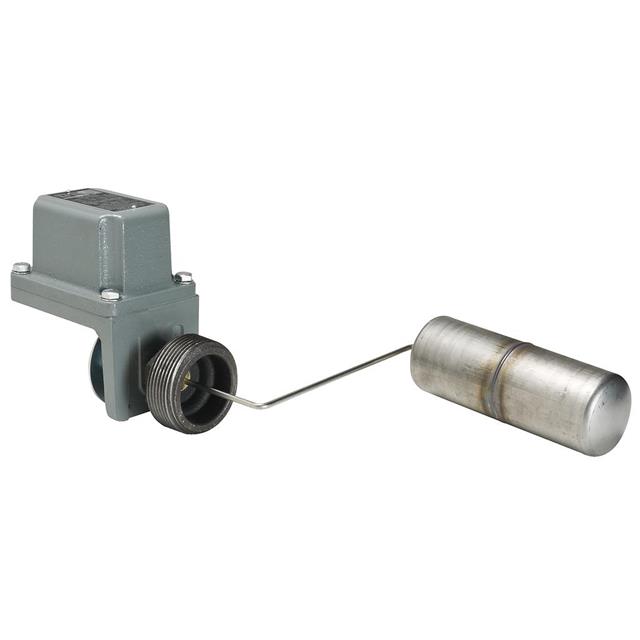

FLOAT SWITCH, 575 V, 90° OFFSET, DPST-NC-DB, NEMA 7/9, -30° C TO 93° C
9037HR32
ActiveSCHNEIDER ELECTRIC
FLOAT SWITCH, 575 V, 90° OFFSET, DPST-NC-DB, NEMA 7/9, -30° C TO 93° C
Description
General part information
9037HR32
FLOAT SWITCH, 575 V, 90° OFFSET, DPST-NC-DB, NEMA 7/9, -30° C TO 93° C
Technical Specifications
Parameters and characteristics for this part
| Specification | 9037HR32 |
|---|---|
| Material - Housing & Prism | Aluminum |
| Minimum Liquid Specific Gravity | 0.85 |
| Mounting Type | Screw Mount |
| Operating Temperature (Max) | 104 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | DPST-NC |
| Output Type | Switch |
| Type | Liquid |
