Description
General part information

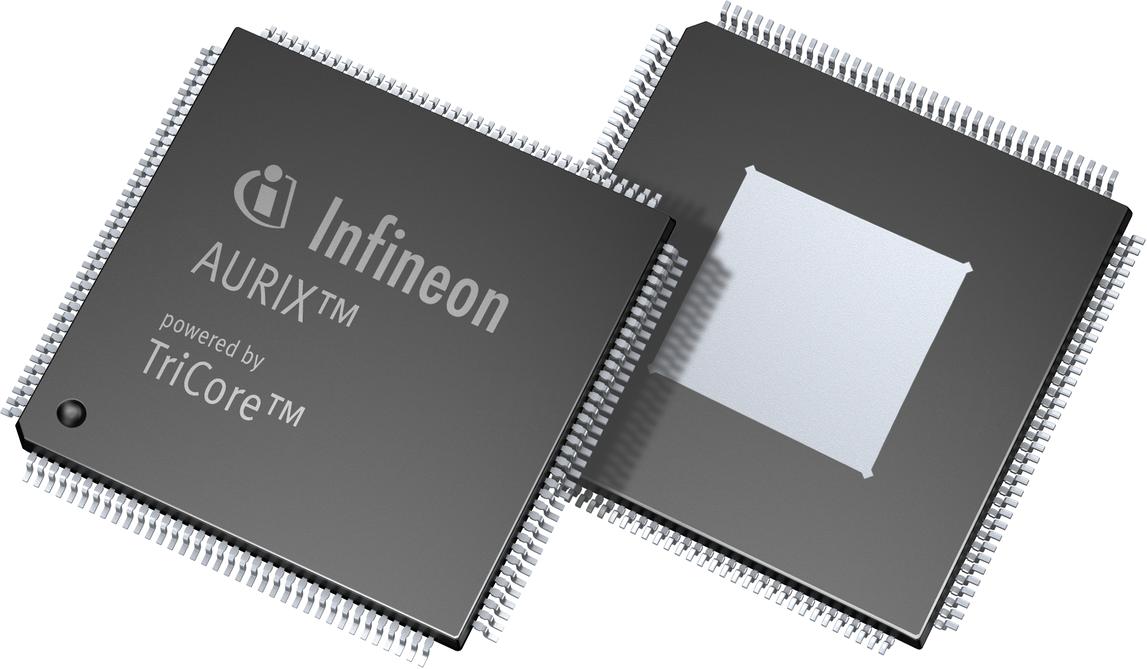

TC297TX128F300NBCKXUMA1
TC297TX128F300NBCKXUMA1 MICROCONTROLLERS INFINEON TECHNOLOGIES AG MCU 32-BIT RISC 8MB FLASH 3.3V/5V 292-PIN - ARROW.COM
Technical Specifications
Parameters and characteristics for this part
| Specification | TC297TX128F300NBCKXUMA1 |
|---|---|
| A/D Channels | 84 count |
| A/D Resolution (bits) | 12 bit |
| Connectivity | MSC, SENT, ASC, CANbus, FlexRay, LINbus, HSSL, QSPI, I2C, PSI5, Ethernet |
| Converter Architecture | Sigma-Delta |
| Converter Model | 10 |
| Core Configuration | Tri-Core |
| Core Processor | TriCore™ |
| Core Size (Bit Width) | 32 Bit |
| EEPROM Size (Depth) | 128 K |
| EEPROM Size (Width) | 8 bit |
| Mounting Type | Surface Mount |
| Number of I/O | 263 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Oscillator Type | External |
| Package / Case | 292-LFBGA |
| Package Name | PG-LFBGA-292-6 |
| Peripherals | WDT, DMA |
| Program Memory Depth | 8 M |
| Program Memory Size | 8 MB |
| Program Memory Type | FLASH |
| Program Memory Width | 8 bit |
| RAM Size Depth | 2.7 M |
| RAM Size Width | 8 bit |
| Speed | 300 MHz |
| Voltage - Supply (Vcc/Vdd) | 5 V, 3.3 V |
