Description
General part information
1SNK526066R0000

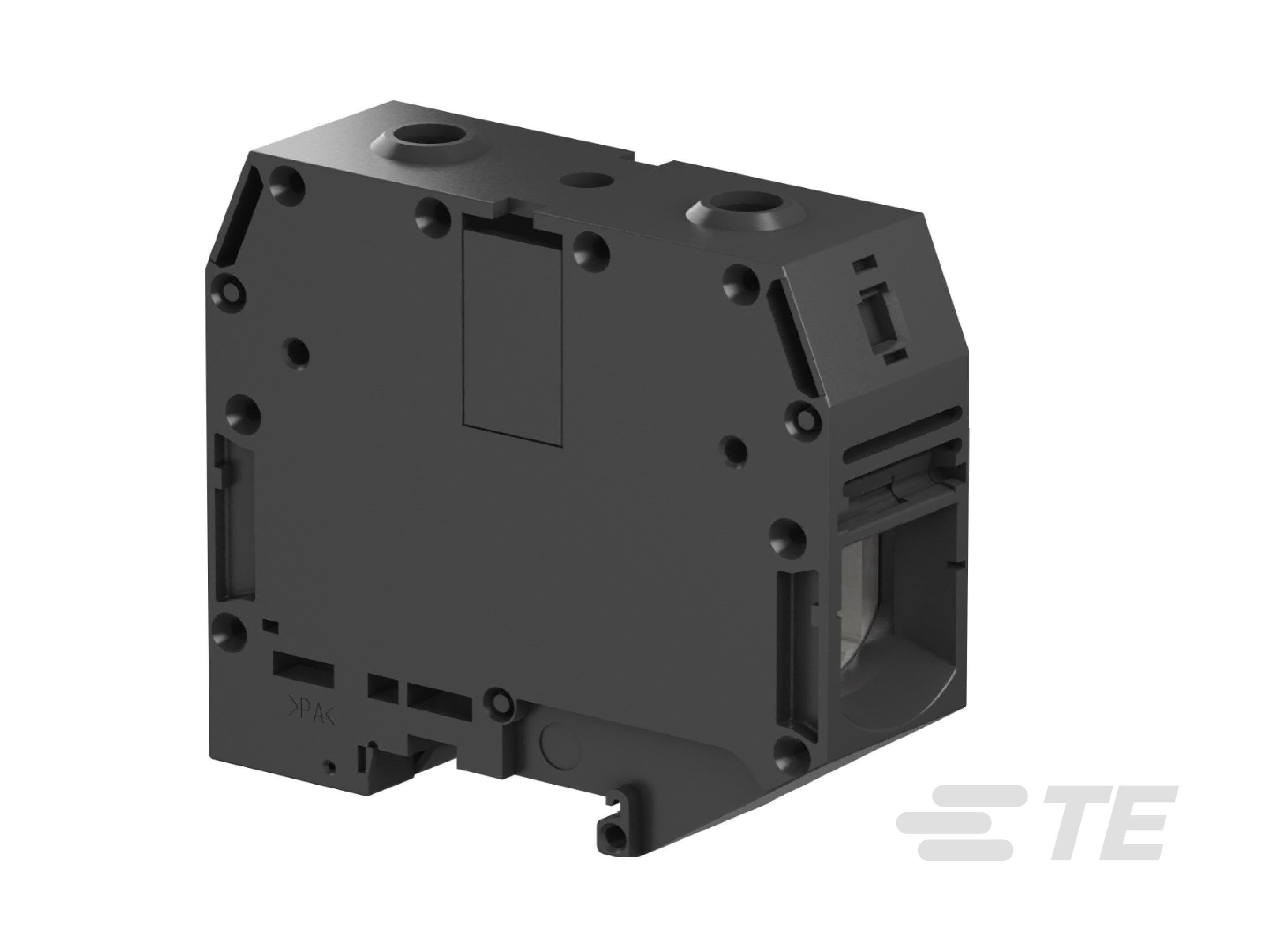

Screw Clamp Terminal Block, Feed-Through, Black, 26 mm [1.023 in] Spacing, 2 Position, Signal, DIN Rail, 1000 VAC, 4/0 AWG, 95 mm² Wire
Technical Specifications
Parameters and characteristics for this part
| Specification | 1SNK526066R0000 |
|---|---|
| Color | Black |
| Current - IEC | 232 A |
| Current - UL | 230 A |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Terminal Width | 26 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Voltage - UL | 1000 V |
| Wire Gauge or Range - AWG | 4/0-2 AWG |
| Wire Gauge or Range - mm² (Maximum) | 120 mm² |
| Wire Gauge or Range - mm² (Minimum) | 35 mm² |
