28B0250-700

28B0250-700

Active
Laird Technologies EMI

FERRITE CORE 135 OHM SOLID

Find alt
28B0250-700

28B0250-700

Active
Laird Technologies EMI

FERRITE CORE 135 OHM SOLID

Find alt

Description

General part information

28B0250-700

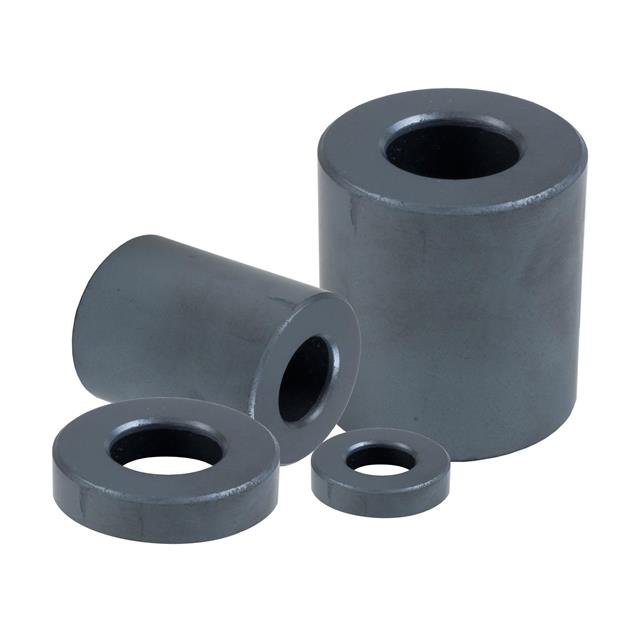

Solid Free Hanging Ferrite Core 135Ohm @ 100MHz ID 0.125" Dia (3.18mm) OD 0.250" Dia (6.35mm) Length 0.394" (10.00mm)

Technical Specifications

Parameters and characteristics for this part

Specification28B0250-700
DesignSolid
Impedance135 Ohm
Inner Dimension (Diameter)0.125 in
Length0.394 in
Material28
Material Temperature Rating28 °C
Mounting TypeFree Hanging
Outer Dimension (Diameter)0.25 in
TypeRound
